1445050-9
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

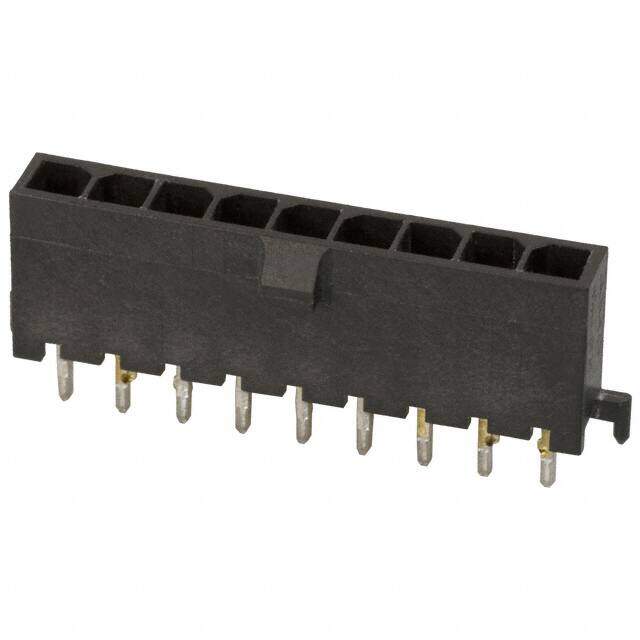

CONN HEADER 3MM 9POS TIN T/H
PDF
/
Inventory: 3104
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Brass
Contact Plating Lead, Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Published 2011
Series Micro MATE-N-LOK
Feature Board Guide
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit, Solder
Connector Type Header
Number of Positions 9
Applications General Purpose
Number of Rows 1
Gender Male
Additional Feature POLARIZED
Fastening Type Locking Ramp
Contact Finish - Mating Tin-Lead
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Current Rating (Amps) Varies by WireGAuge
Orientation Straight
Depth 5.67mm
Insulation Height 0.364 9.25mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.118 3.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.125 3.18mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 1
Lead Pitch 3mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.223 inch
Lead Length 3.18mm
Empty Shell NO
Contact Resistance 20mOhm
ELV Non-Compliant
Max Voltage Rating (AC) 250V
Polarization Key POLARIZED HOUSING
Insertion Force-Max 6.672 N
Dimensions
Length 28mm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
