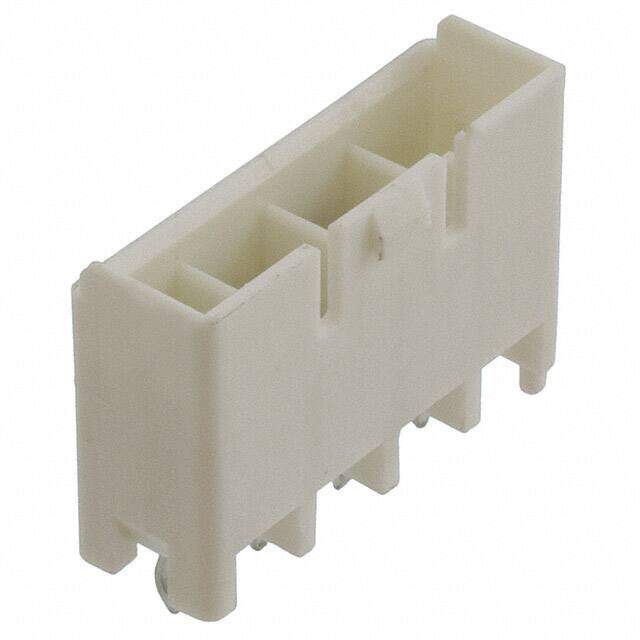

1376384-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 4POS 5MM NATURAL TIN
PDF
/
Buying Options
Total Price: USD $1.08
Unit Price: USD $1.0824
≥1 USD $1.0824
≥10 USD $1.01464
≥100 USD $0.873312
≥500 USD $0.689216
≥1000 USD $0.623128
≥3000 USD $0.584241
Inventory: 725
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 40.64mm
Stack Height (Mating) 19.4mm
Plating Thickness 39μin
Width 14.097mm
Length 21.6mm
Height 13.97mm
Technical
Contact Retention Without
Mating Post Length 6.2992mm
Number of Signal Positions 0
Circuit Application Power
Contact Current Rating 10A
Sealable No
Insertion Force-Max 9.7856 N
Durability 25 Cycles
Max Voltage Rating (AC) 300V
ELV Compliant
Operating Supply Voltage 300V
Lead Length 3.5mm
Housing Color Natural
Contact Gender Male
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.138 3.50mm
Approval Agency CSA
Reliability COMMERCIAL
Number of Conductors ONE
Pitch - Mating 0.197 5.00mm
Current Rating 9A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.555 14.10mm
Depth 7mm
Orientation Vertical
Current Rating (Amps) Varies by WireGAuge
Mixed Contacts YES
Contact Type Tab
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Voltage - Rated 300VAC
Number of Rows 1
Applications General Purpose
Number of Positions 4
Connector Type Header
ECCN Code EAR99
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
Series Power Key
Published 2008
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Material Nylon
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Contact Shape Rectangular
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 months ago)
Factory Lead Time 15 Weeks
