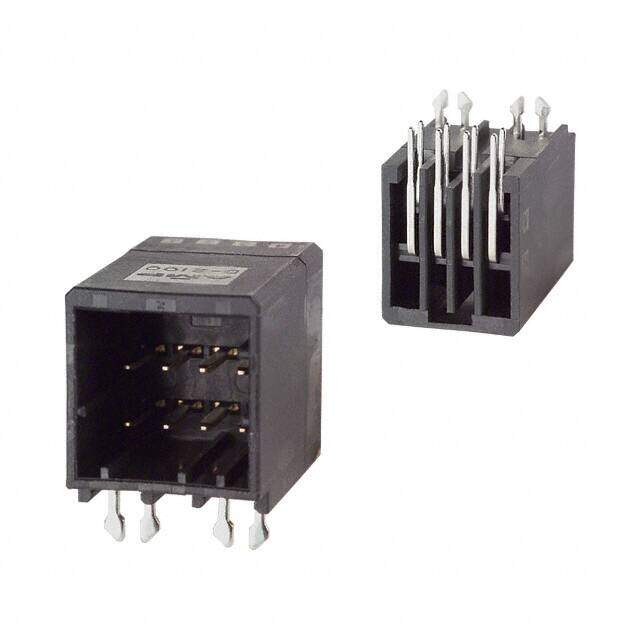

1376009-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Power HDR 8 POS 2.5mm Solder RA Thru-Hole 8 Terminal 1 Port Automotive Tube
PDF
/
Buying Options
Total Price: USD $2.97
Unit Price: USD $2.9656
≥1 USD $2.9656
≥10 USD $2.627161
≥100 USD $2.344285
≥500 USD $1.926628
≥1000 USD $1.670645
Inventory: 945
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.6002mm
Length - Tail 3.4036mm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Width 20.19mm
Length 12.7mm
Height 15.05mm
Technical
VDE Tested No
Preloaded Yes
Mating Alignment With
Contact Retention Without
Mating Retention With
Halogen Free Halogen Free
Contact Current Rating 5A
Sealable No
Number of Ports 1
Max Voltage Rating (AC) 250V
ELV Compliant
Row Spacing 3.75 mm
Operating Supply Voltage 250V
Housing Color Black
Contact Finish - Post Tin
Number of Contacts 8
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.134 3.40mm
Approval Agency UL
Insulation Color Black
Pitch - Mating 0.098 2.50mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.579 14.70mm
Depth 20.19mm
Shielding Unshielded
Orientation Right Angle
Pitch 2.4892mm
Current Rating (Amps) 5A
Contact Type Tab
Contact Finish - Mating Gold
Fastening Type Detent Lock
Voltage - Rated 250VAC
Gender Male
Number of Rows 2
Applications General Purpose, Industrial
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 8
Connector Type Header
Termination Solder
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
Series Dynamic D-2100
Published 2004
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
PCB Mount Retention With
PCB Mounting Orientation Right Angle
Housing Material Polyester
Insulation Material Thermoplastic, Polyester, Glass Filled
Contact Shape Rectangular
Number of Pins 8
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold, Tin
Contact Material Copper Alloy
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 17 Weeks
Alternative Model
