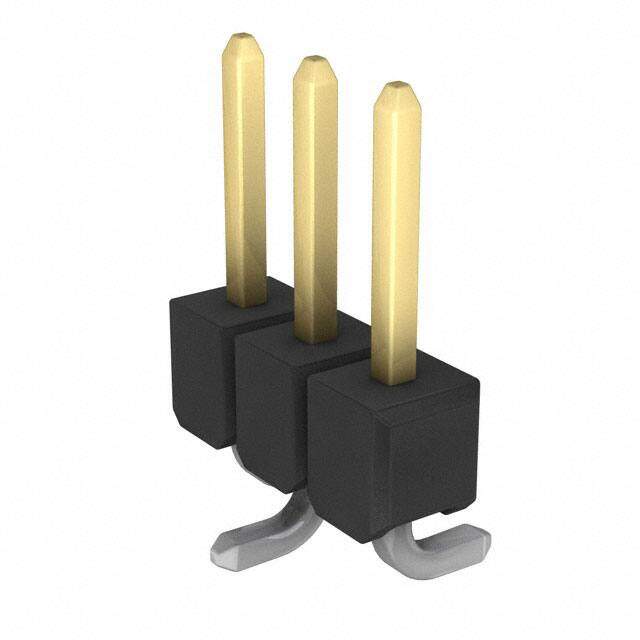

1241150-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
HEADER, SMT, 3WAY
PDF
/
Buying Options
Total Price: USD $1.77
Unit Price: USD $1.7688
≥1 USD $1.7688
≥10 USD $1.62096
≥100 USD $1.445488
Inventory: 1433
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Contact Finish Thickness - Post 118.1μin 3.00μm
Contact Finish Thickness - Mating Flash
Plating Thickness 800 nm
Technical
High Speed Serial Data Connector No
Mating Post Length 5.8mm
Number of Poles 3
ELV Compliant
Row Spacing 2.54 mm
Insulation Resistance 5GOhm
Working Voltage 250V
Contact Gender Male
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.228 5.80mm
Contact Finish - Post Tin
Lead Pitch 2.54mm
Number Of PCB Rows 1
Shrouding Unshrouded
Reliability COMMERCIAL
Voltage - Rated AC 250V
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.110 2.79mm
Total Number of Contacts 13
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold or Gold-Palladium
Voltage - Rated DC 250V
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature BLISTER PACK
Number of Rows 1
Min Operating Temperature -65°C
Max Operating Temperature 105°C
Connector Type Header, Breakaway
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Pick and Place
Series AMPMODU Mod II
Published 2000
Packaging Tape & Reel (TR)
Physical
PCB Mounting Orientation Vertical
Housing Material Polycyclohexylenedimethylene
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT)
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 28 Weeks
