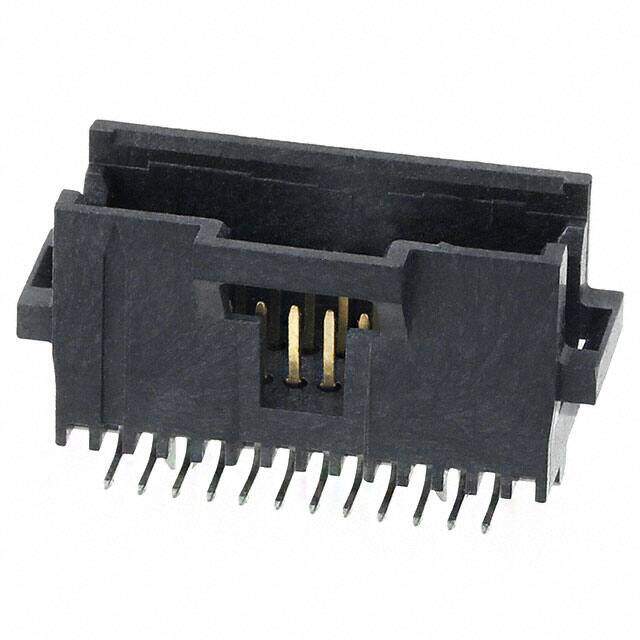

104549-3
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings SYS50 SMT HDR
PDF
/
Buying Options
Total Price: USD $15.26
Unit Price: USD $15.263775
≥1 USD $15.263775
≥200 USD $6.090543
≥500 USD $5.887044
≥864 USD $5.78595
Inventory: 3278
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Contact Material Copper Alloy
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Circular
Insulation Material Polyphthalamide (PPA)
Housing Material Thermoplastic
PCB Mounting Orientation Vertical
Technical
Operating Temperature -65°C~105°C
Packaging Tube
Published 2005
Series AMPMODU System 50
JESD-609 Code e0
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 24
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 2
Voltage - Rated 30VAC
Additional Feature SHROUDED, AMPMODU
Fastening Type Latch Holder
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Total Number of Contacts 24
Orientation Straight
Depth 8.73mm
Insulation Height 0.435 11.05mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Number of Conductors ONE
Reference Standard UL
Voltage - Rated AC 30V
Reliability COMMERCIAL
Approval Agency CSA
Row Spacing - Mating 0.100 (2.54mm)
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin-Lead
Contact Length - Mating 0.125 3.18mm
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.344 inch
UL Flammability Code 94V-0
Housing Color Black
Lead Length 2.54mm
Operating Supply Voltage 30V
Rated Current (Signal) 3.6A
Contact Resistance 15mOhm
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.05 inch
ELV Compliant
Max Voltage Rating (AC) 30V
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 500VAC V
PCB Contact Row Spacing 5.6896 mm
Insertion Force-Max 1.39 N
Contact Current Rating 1A
Mating Post Length 3.175mm
Keyed No
Shrouded End Dimension 1.27 mm
Dimensions
Length 18.54mm
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 150.0μin 3.81μm
PCB Thickness 1.57mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
