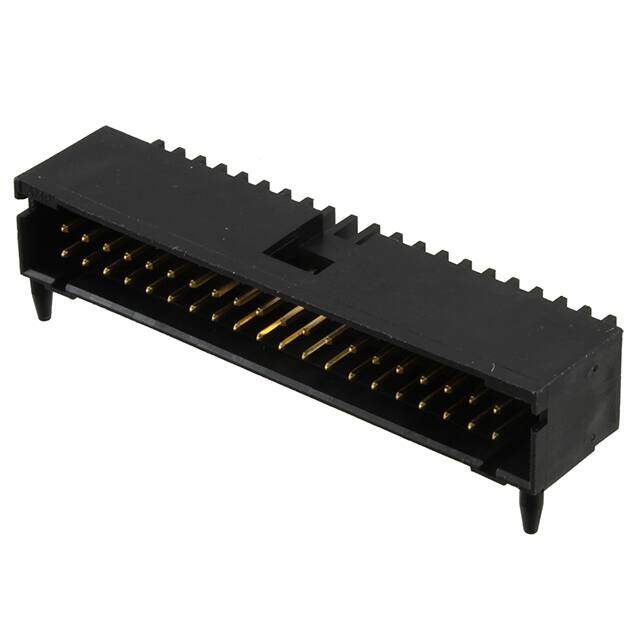

104319-4
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 40 MODII HDR DRRA SH
PDF
/
Inventory: 4179
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length - Termination 0.135 inch
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Plating Thickness 15μin
Technical
Dielectric Withstanding Voltage 1050VAC V
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.1 inch
Insulation Resistance 5000000000Ohm
Body Depth 0.639 inch
UL Flammability Code 94V-0
Body Breadth 0.415 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.318 8.08mm
Contact Finish - Post Tin-Lead
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.135 3.43mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.400 10.16mm
Current Rating (Amps) 3A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Detent Lock
Additional Feature AMPMODU, SHROUDED
Number of Rows 2
Number of Positions 40
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Board Guide
JESD-609 Code e0
Series AMPMODU Mod II
Published 2009
Packaging Tube
Operating Temperature -65°C~105°C
Physical
Board Mounting Option PEG
Mounting Option 1 LOCKING
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 19 Weeks
