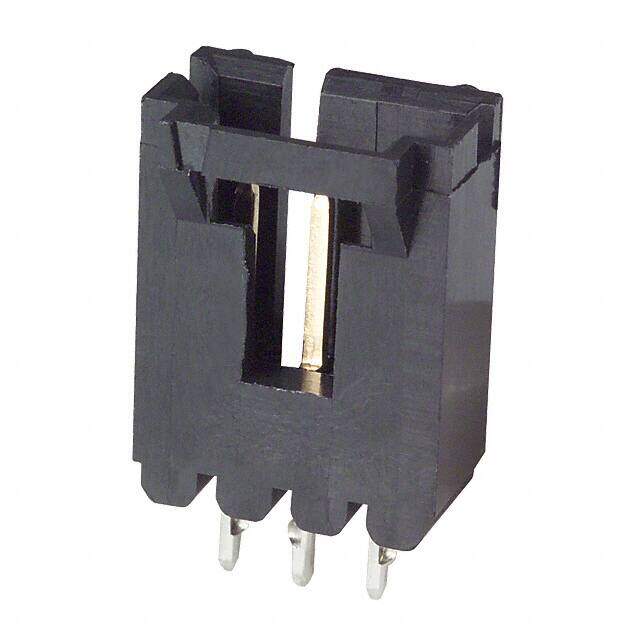

103908-2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Automotive Tube
PDF
/
Buying Options
Total Price: USD $1.29
Unit Price: USD $1.2936
≥1 USD $1.2936
≥10 USD $1.13469
≥100 USD $1.05321
≥500 USD $0.942665
≥1000 USD $0.843753
≥3000 USD $0.756466
Inventory: 44
Minimum: 1
-
+
Technical Details
Technical
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 1
Contact Finish - Post Tin-Lead
Contact Length - Mating 0.230 5.84mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.275 inch
Housing Color Black
Rated Current (Signal) 3A
Overall Contact Length 0.545 13.84mm
Contact Resistance 15mOhm
Insulation Resistance 5GOhm
Row Spacing 2.54 mm
ELV Non-Compliant
Dielectric Withstanding Voltage 600VAC V
Contact Current Rating 3A
Mating Retention With
Mating Post Length 5.842mm
Contact Length - Post 0.130 3.30mm
Approval Agency CSA
Reliability COMMERCIAL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.535 13.60mm
Depth 6.98mm
Orientation Vertical
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Latch Holder
Gender Male
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 3
Connector Type Header
Termination Press-Fit, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Keying Slot
Series AMPMODU MTE
Published 2008
Packaging Tube
Operating Temperature -65°C~105°C
Dimensions
Height 13.59mm
Length 10.16mm
Plating Thickness 5.08μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Length - Tail 3.3mm
PCB Thickness 2.032mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
Physical
PCB Mount Alignment Without
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 20 Weeks
