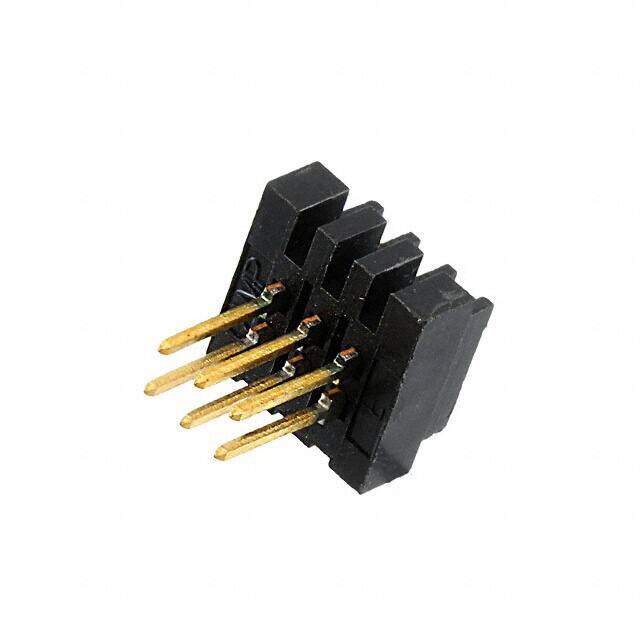

102792-6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 6POS R/A .100 GOLD
PDF
/
Inventory: 6779
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 42 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Contact Material Copper Alloy
Contact Plating Nickel, Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Thermoplastic
PCB Mounting Orientation Right Angle
PCB Mount Retention Without
Technical
Operating Temperature -65°C~105°C
Packaging Bulk
Published 2008
Series AMPMODU MT
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 6
Number of Rows 2
Additional Feature AMPMODU, SHIELDED
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Right Angle
Shielding Unshielded
Insulation Height 0.434 11.02mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Approval Agency CSA
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.135 3.43mm
Shrouding Unshrouded
Contact Length - Mating 0.318 8.08mm
Mating Information MULTIPLE MATING PARTS AVAILABLE
Insulation Resistance 5GOhm
ELV Compliant
Contact Current Rating 3A
Mating Post Length 8.0772mm
Dimensions
Height 18.415mm
Length 10.922mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post Flash
Length - Tail 3.429mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
