102619-2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

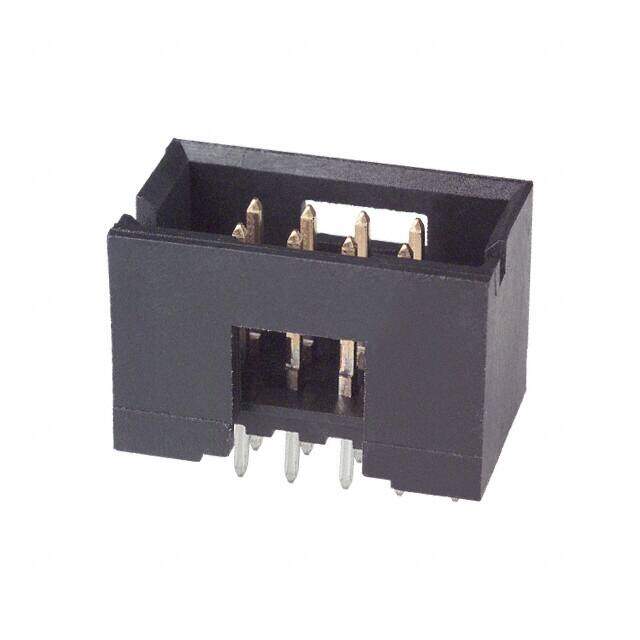

CONN HEADER VERT .100 8POS 15AU
PDF
/
Inventory: 3799
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Thermoplastic
Technical
Operating Temperature -65°C~105°C
Packaging Tray
Published 2008
Series AMPMODU Mod II
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 8
Number of Rows 2
Gender Male
Voltage - Rated 750V
Additional Feature AMPMODU, SHROUDED
Fastening Type Detent Lock
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Vertical
Depth 10.16mm
Insulation Height 0.440 11.18mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reliability COMMERCIAL
Approval Agency CSA
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.125 3.18mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin-Lead
Contact Length - Mating 0.318 8.08mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.4 inch
UL Flammability Code 94V-0
Housing Color Black
Lead Length 3.175mm
Rated Current (Signal) 3A
Overall Contact Length 0.533 13.55mm
Insulation Resistance 5GOhm
Mating Contact Pitch 0.1 inch
ELV Non-Compliant
Polarization Key POLARIZED HOUSING
Contact Current Rating 3A
Mating Post Length 8.08mm
High Temperature Housing No
Shrouded End Dimension 3.81 mm
Dimensions
Length 17.27mm
Plating Thickness 15μin
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
Alternative Model
