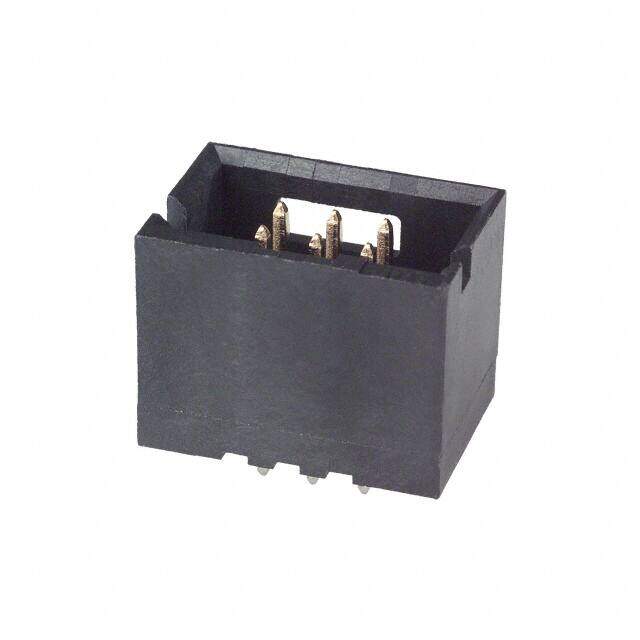

102619-1
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT .100 6POS 15AU
PDF
/
Inventory: 5548
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Plating Thickness 15μin
Length 14.73mm
Technical
Shrouded End Dimension 3.81 mm
High Temperature Housing No
Mating Post Length 8.08mm
Contact Current Rating 3A
Polarization Key POLARIZED HOUSING
ELV Non-Compliant
Mating Contact Pitch 0.1 inch
Insulation Resistance 5GOhm
Overall Contact Length 0.533 13.55mm
Rated Current (Signal) 3A
Lead Length 3.175mm
Housing Color Black
UL Flammability Code 94V-0
Body Breadth 0.4 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.318 8.08mm
Contact Finish - Post Tin-Lead
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.125 3.18mm
Row Spacing - Mating 0.100 (2.54mm)
Approval Agency CSA
Reliability COMMERCIAL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.440 11.18mm
Depth 10.16mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Detent Lock
Additional Feature AMPMODU, SHROUDED
Voltage - Rated 750V
Gender Male
Number of Rows 2
Number of Positions 6
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e0
Series AMPMODU Mod II
Published 2008
Packaging Tray
Operating Temperature -65°C~105°C
Physical
PCB Mounting Orientation Vertical
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
