102159-2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

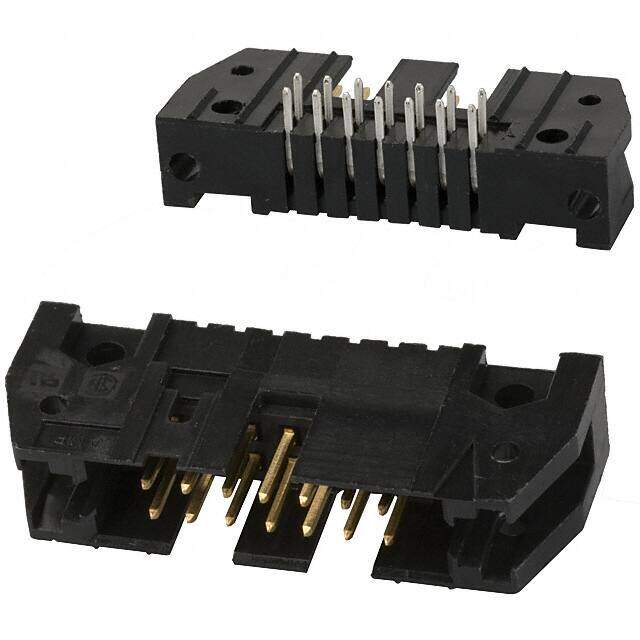

Headers & Wire Housings RA EJECT PIN HDR 14P
PDF
/
Inventory: 8597
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.57mm
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Length 37.084mm
Height 8.636mm
Technical
Shrouded End Dimension 3.81 mm
Mating Connector Lock Without
Circuit Application Signal
Contact Current Rating 1A
Dielectric Withstanding Voltage 1000VAC V
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 250V
ELV Compliant
Mating Contact Pitch 0.1 inch
Insulation Resistance 5GOhm
Operating Supply Voltage 250V
Lead Length 2.79mm
UL Flammability Code 94V-0
Contact Gender Male
Body Breadth 0.336 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.240 6.10mm
Contact Finish - Post Tin-Lead
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.110 2.79mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.315 8.00mm
Depth 13.94mm
Orientation Right Angle
Current Rating (Amps) 1A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold or Gold-Palladium
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature POLARIZED
Voltage - Rated 250VAC
Number of Rows 2
Number of Positions 14
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
Feature Keying Slot, Mounting Flange
JESD-609 Code e0
Series AMP-Latch
Published 1997
Packaging Bulk
Operating Temperature -65°C~105°C
Physical
PCB Mount Retention With
PCB Mounting Orientation Right Angle
Housing Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Brass
