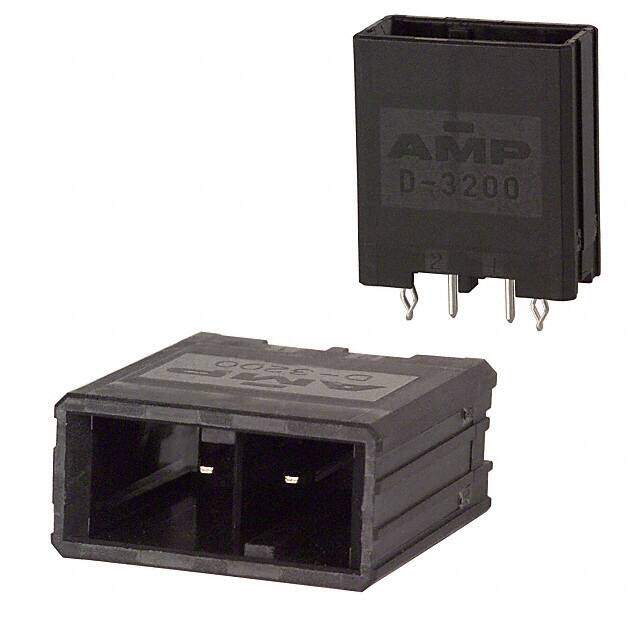

1-917337-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 2POS 5.08MM
PDF
/
Buying Options
Total Price: USD $0.63
Unit Price: USD $0.6336
≥1 USD $0.6336
≥10 USD $0.577078
≥100 USD $0.497288
≥500 USD $0.468178
Inventory: 1246
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.6002mm
Stack Height (Mating) 31.00mm ~ 32.50mm
Length - Tail 3.8mm
Contact Finish Thickness - Mating 78.7μin 2.00μm
Width 9.3472mm
Length 19.05mm
Height 21.59mm
Technical
VDE Tested No
Preloaded Yes
Mating Alignment With
Contact Retention Without
Mating Retention With
Halogen Free Halogen Free
Contact Current Rating 15A
Sealable No
Number of Ports 1
Max Voltage Rating (AC) 600V
ELV Compliant
Contact Style Straight
Operating Supply Voltage 600V
Housing Color Black
Contact Gender Male
Contact Finish - Post Tin
Number of Contacts 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.150 3.81mm
Approval Agency UL
Insulation Color Black
Pitch - Mating 0.200 5.08mm
Current Rating 15A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.850 21.59mm
Depth 9.35mm
Shielding Unshielded
Orientation Vertical
Pitch 5.08mm
Contact Type Tab
Contact Finish - Mating Tin
Fastening Type Detent Lock
Voltage - Rated 600V
Gender Male
Number of Rows 1
Applications General Purpose, Industrial
Color Black
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 2
Connector Type Header
Termination Solder
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
Series Dynamic D-3200
Published 2007
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
PCB Mount Retention With
PCB Mounting Orientation Vertical
Housing Material Polyester
Insulation Material Thermoplastic, Polyester, Glass Filled
Contact Shape Rectangular
Number of Pins 2
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 months ago)
Factory Lead Time 21 Weeks
