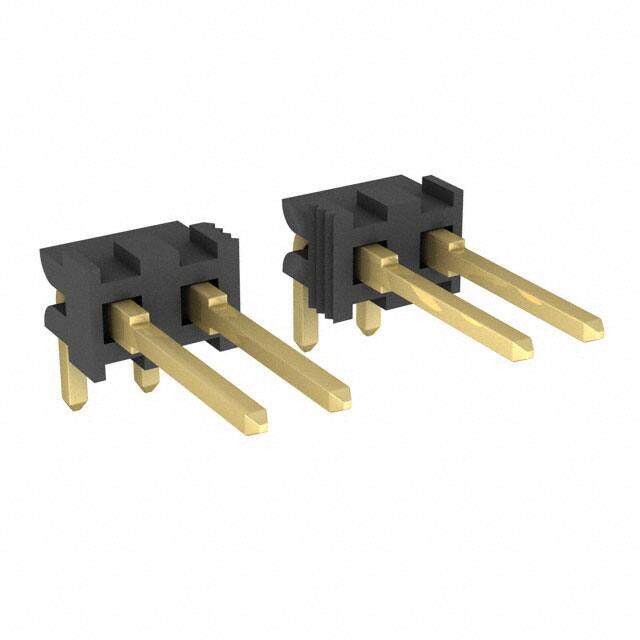

1-87232-5 image
Favorite
1-87232-5 image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Headers & Wire Housings OBSOLETE
PDF
/
Inventory: 5014
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post Flash
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin

Technical

PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.318 8.08mm
Number Of PCB Rows 1
Shrouding Unshrouded
Contact Length - Post 0.110 2.79mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.138 3.50mm
Terminal Pitch 2.54mm
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 1
Number of Positions 15
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series AMPMODU Mod II
Published 2008
Packaging Bulk
Operating Temperature -65°C~105°C

Physical

Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
