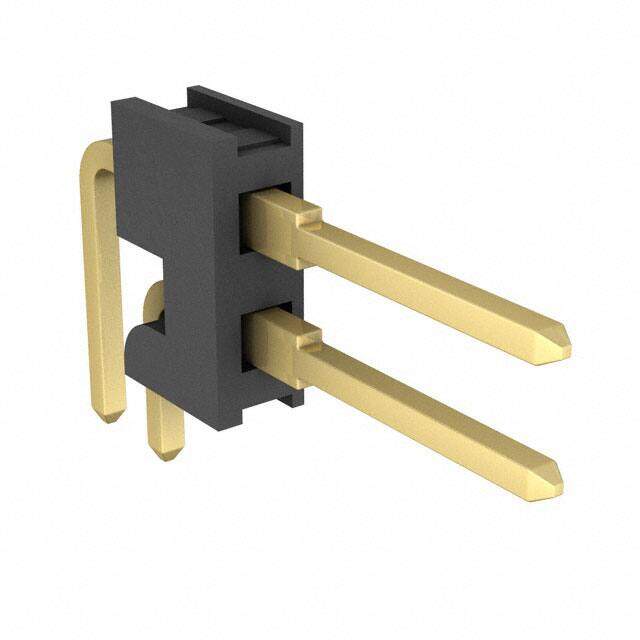

1-86479-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER RT/A 2POS .100 30AU
PDF
/
Buying Options
Total Price: USD $1.42
Unit Price: USD $1.4168
≥1 USD $1.4168
≥10 USD $1.2936
≥100 USD $1.15324
≥500 USD $1.032152
≥1000 USD $0.923833
≥3000 USD $0.85375
Inventory: 3974
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Thermoplastic
PCB Mounting Orientation Right Angle
Technical
Operating Temperature -65°C~105°C
Packaging Tray
Published 2008
Series AMPMODU Mod II
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 2
Number of Rows 2
Gender Male
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.54mm
Orientation Right Angle
Depth 15.42mm
Insulation Height 0.238 6.05mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Number of Conductors ONE
Reliability COMMERCIAL
Approval Agency CSA
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.110 2.79mm
Shrouding Unshrouded
Number Of PCB Rows 2
Lead Pitch 2.54mm
Contact Length - Mating 0.318 8.08mm
PCB Contact Pattern RECTANGULAR
Mating Information 5-87456-3
UL Flammability Code 94V-0
Housing Color Black
Lead Length 2.794mm
Rated Current (Signal) 3A
Insulation Resistance 5GOhm
ELV Compliant
Dielectric Withstanding Voltage 1050VAC V
Contact Current Rating 3A
Mating Post Length 8.08mm
High Temperature Housing No
Dimensions
Length 2.13mm
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post Flash
PCB Thickness 1.397mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
