1-794635-2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

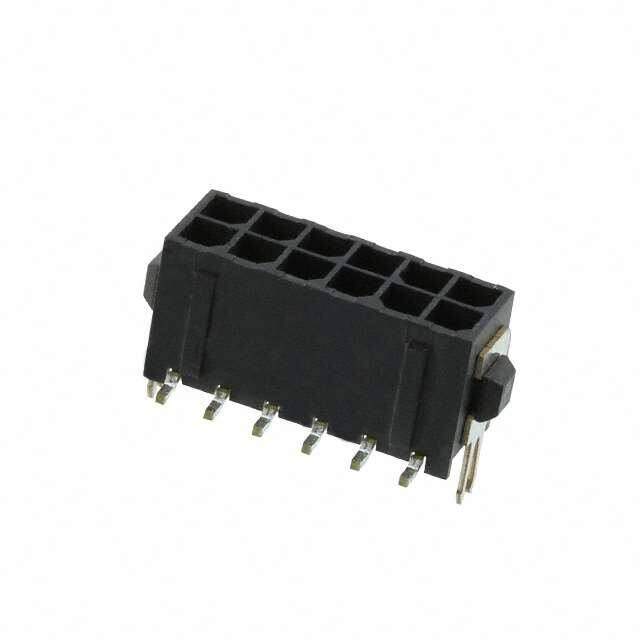

Pin & Socket Connectors 12POS MICRO MNL ASSY VRT,SMT
PDF
/
Inventory: 5128
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2008
Series Micro MATE-N-LOK
JESD-609 Code e4
Feature Board Lock, Pick and Place
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 12
Applications General Purpose, Industrial, Lighting
Number of Rows 2
Voltage - Rated 250V
HTS Code 8536.69.40.30
Fastening Type Locking Ramp
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Current Rating (Amps) Varies by WireGAuge
Total Number of Contacts 12
Orientation Straight
Insulation Height 0.364 9.25mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.118 3.00mm
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Body Length or Diameter 0.866 inch
Row Spacing - Mating 0.118 (3.00mm)
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin-Lead
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Housing Color Black
Empty Shell NO
Body Depth 0.364 inch
Insulation Resistance 100000000Ohm
Mating Contact Pitch 0.118 inch
ELV Non-Compliant
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 1500VAC V
Durability 150 Cycles
Dimensions
Width 6.86mm
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
Alternative Model
