1-794627-2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

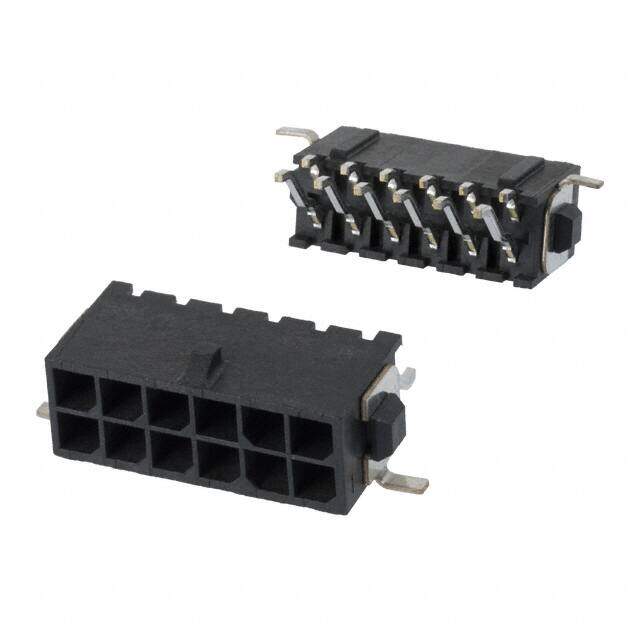

CONN HDR 12POS DUAL R/A TIN SMD
PDF
/
Inventory: 3568
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Brass
Contact Plating Lead, Tin
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2005
Series Micro MATE-N-LOK
JESD-609 Code e0
Feature Solder Retention
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Durability 30 Cycles
Dielectric Withstanding Voltage 1500VAC V
Polarization Key POLARIZED HOUSING
ELV Non-Compliant
Mating Contact Pitch 0.118 inch
Insulation Resistance 100000000Ohm
Body Depth 0.615 inch
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Lead Pitch 3mm
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.118 (3.00mm)
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.118 3.00mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.290 7.37mm
Orientation Right Angle
Total Number of Contacts 12
Current Rating (Amps) Varies by WireGAuge
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin-Lead
Fastening Type Locking Ramp
HTS Code 8536.69.40.40
Additional Feature POLARIZED
Voltage - Rated 250V
Gender Male
Number of Rows 2
Applications General Purpose
Number of Positions 12
Connector Type Header
ECCN Code EAR99
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Plating Thickness 100μin
Length 18.9mm
Alternative Model
