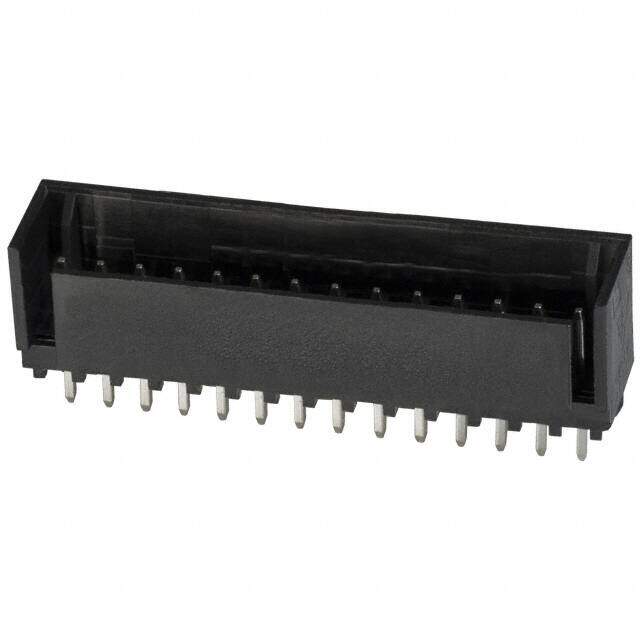

1-644486-4
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT .100 14POS TIN
PDF
/
Buying Options
Total Price: USD $13.36
Unit Price: USD $13.358472
≥1 USD $13.358472
≥10 USD $12.602327
≥100 USD $11.888994
≥500 USD $11.216031
≥1000 USD $10.581157
Inventory: 5976
Minimum: 1
-
+
Technical Details
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2011
Series MTA-100
Feature Board Guide
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 14
Applications General Purpose
Number of Rows 1
Voltage - Rated 250VAC
Fastening Type Friction Lock
Contact Finish - Mating Tin-Lead
Contact Type Male Pin
Current Rating (Amps) Varies by WireGAuge
Orientation Vertical
Terminal Pitch 2.54mm
Insulation Height 0.410 10.41mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Voltage - Rated AC 250V
Reliability COMMERCIAL
Contact Length - Post 0.140 3.56mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 1
Contact Length - Mating 0.200 5.08mm
PCB Contact Pattern RECTANGULAR
Contact Gender Male
Housing Color White
Lead Length 3.56mm
Overall Contact Length 0.440 11.18mm
Contact Resistance 10mOhm
Insulation Resistance 5000000000Ohm
ELV Non-Compliant
Max Voltage Rating (AC) 250V
Polarization Key POLARIZING PEG
Dielectric Withstanding Voltage 750VAC V
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
