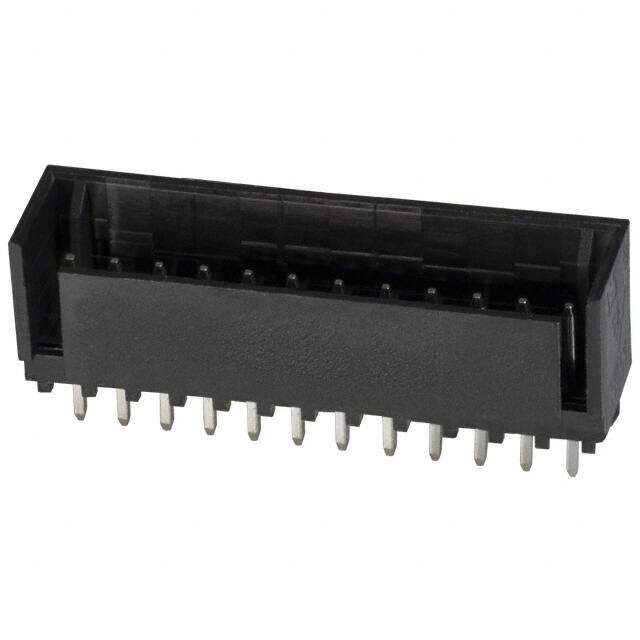

1-644486-2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT .100 12POS TIN
PDF
/
Inventory: 4405
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2011
Series MTA-100
Feature Board Guide
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 12
Applications General Purpose
Number of Rows 1
Voltage - Rated 250VAC
Fastening Type Friction Lock
Contact Finish - Mating Tin-Lead
Contact Type Male Pin
Current Rating (Amps) Varies by WireGAuge
Orientation Vertical
Terminal Pitch 2.54mm
Insulation Height 0.410 10.41mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Voltage - Rated AC 250V
Reliability COMMERCIAL
Contact Length - Post 0.140 3.56mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 1
Contact Length - Mating 0.200 5.08mm
PCB Contact Pattern RECTANGULAR
Contact Gender Male
Housing Color White
Lead Length 3.56mm
Overall Contact Length 0.440 11.18mm
Contact Resistance 10mOhm
Insulation Resistance 5000000000Ohm
ELV Non-Compliant
Max Voltage Rating (AC) 250V
Polarization Key POLARIZING PEG
Dielectric Withstanding Voltage 750VAC V
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
