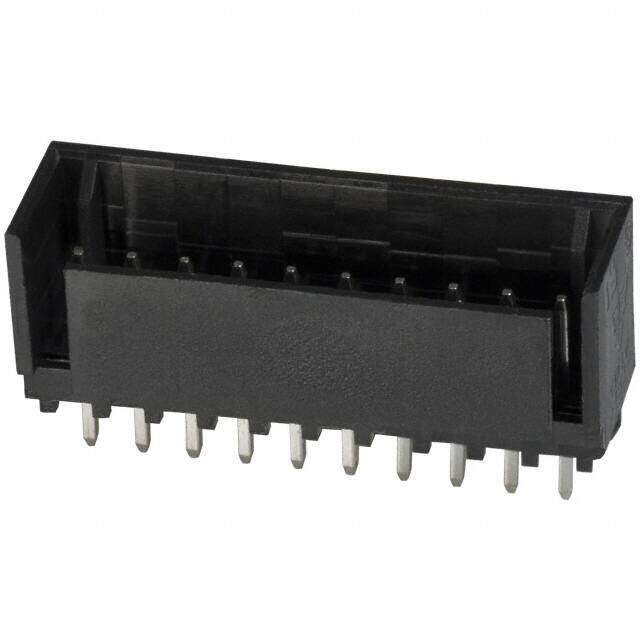

1-644486-0
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT .100 10POS TIN
PDF
/
Buying Options
Total Price: USD $1
Unit Price: USD $1.004785
≥1 USD $1.004785
≥10 USD $0.947912
≥100 USD $0.894258
≥500 USD $0.843637
≥1000 USD $0.795888
Inventory: 1344
Minimum: 1
-
+
Technical Details
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2011
Series MTA-100
JESD-609 Code e0
Feature Board Guide
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 10
Applications General Purpose
Number of Rows 1
Voltage - Rated 250VAC
Additional Feature POLARIZED
Fastening Type Friction Lock
Contact Finish - Mating Tin-Lead
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Current Rating (Amps) Varies by WireGAuge
Orientation Vertical
Terminal Pitch 2.54mm
Insulation Height 0.410 10.41mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Voltage - Rated AC 250V
Reliability COMMERCIAL
Contact Length - Post 0.140 3.56mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 1
Contact Length - Mating 0.200 5.08mm
PCB Contact Pattern RECTANGULAR
Contact Gender Male
UL Flammability Code 94V-0
Housing Color White
Lead Length 3.56mm
Overall Contact Length 0.440 11.18mm
Contact Resistance 10mOhm
Insulation Resistance 5000000000Ohm
ELV Compliant
Max Voltage Rating (AC) 250V
Polarization Key POLARIZING PEG
Dielectric Withstanding Voltage 750VAC V
Dimensions
Height 10.4mm
Length 27.5mm
Width 7.95mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
