1-641213-4
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

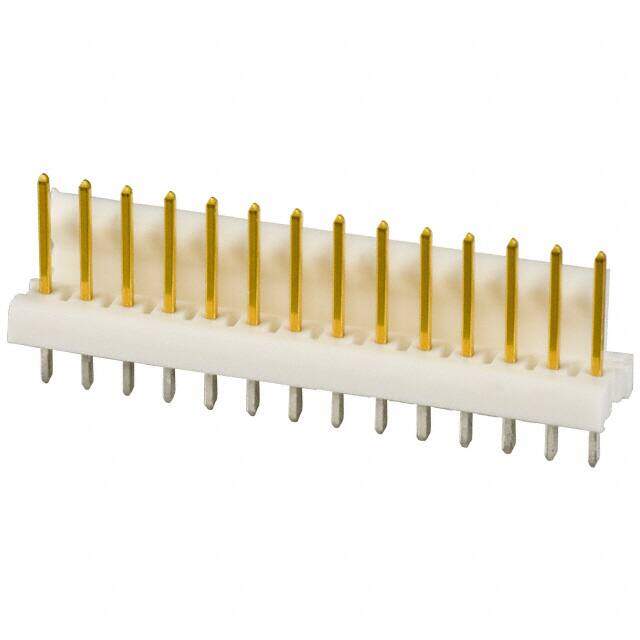

CONN HEADER VERT 14POS .100 30AU
PDF
/
Inventory: 4797
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Thermoplastic
Housing Material Polyester
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2015
Series MTA-100
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 14
Applications General Purpose
Number of Rows 1
Voltage - Rated 250VAC
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) Varies by WireGAuge
Terminal Pitch 2.54mm
Insulation Height 0.305 7.75mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.100 2.54mm
Insulation Color Natural
Number of Conductors ONE
Reference Standard UL, CSA
Voltage - Rated AC 250V
Reliability COMMERCIAL
Contact Length - Post 0.140 3.56mm
Shrouding Shrouded - 1 Wall
Number Of PCB Rows 1
Contact Finish - Post Tin-Lead
Contact Length - Mating 0.295 7.49mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.225 inch
Contact Gender Male
Housing Color White
Body Depth 0.29 inch
Overall Contact Length 0.535 13.59mm
Contact Resistance 6mOhm
Insulation Resistance 5000000000Ohm
ELV Non-Compliant
Polarization Key HOUSING SIDE
Dielectric Withstanding Voltage 750VAC V
Durability 25 Cycles
Insertion Force-Max 8.896 N
Dimensions
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 150.0μin 3.81μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
