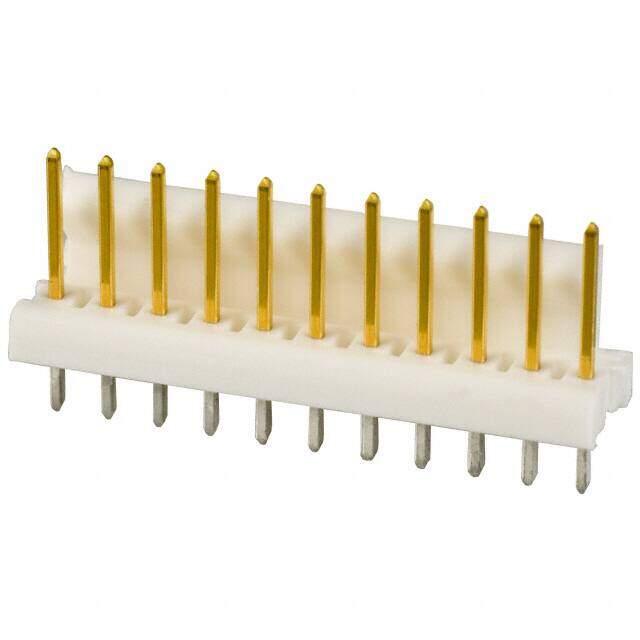

1-641213-1
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 11POS .100 30AU
PDF
/
Inventory: 6512
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Thermoplastic
Housing Material Polyester
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2015
Series MTA-100
JESD-609 Code e4
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 11
Applications General Purpose
Number of Rows 1
Gender Male
Voltage - Rated 250VAC
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Current Rating (Amps) Varies by WireGAuge
Terminal Pitch 2.54mm
Insulation Height 0.305 7.75mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Natural
Number of Conductors ONE
Reference Standard UL, CSA
Voltage - Rated AC 250V
Reliability COMMERCIAL
Contact Length - Post 0.140 3.56mm
Shrouding Shrouded - 1 Wall
Number Of PCB Rows 1
Contact Finish - Post Tin-Lead
Contact Length - Mating 0.295 7.49mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.225 inch
UL Flammability Code 94V-0
Housing Color White
Overall Contact Length 0.535 13.59mm
Contact Resistance 5mOhm
Insulation Resistance 5000000000Ohm
ELV Non-Compliant
Dielectric Withstanding Voltage 750VAC V
Dimensions
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 150.0μin 3.81μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
