1-5164713-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

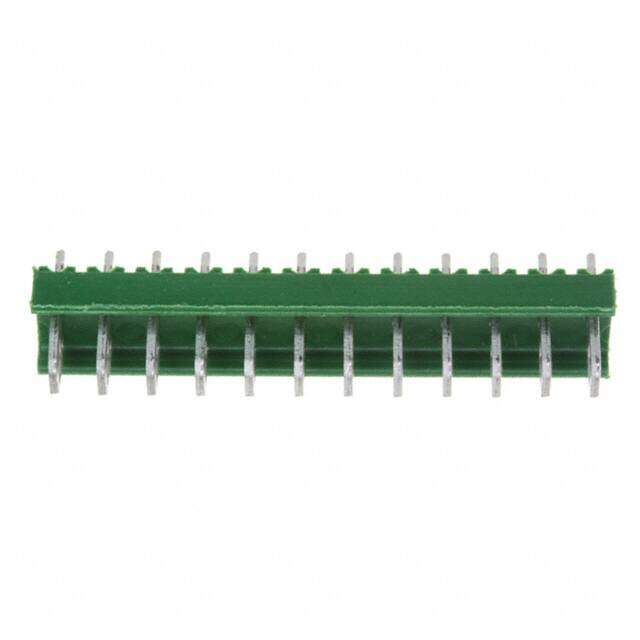

CONN HEADER 12POS VERT 2.5MM TIN
PDF
/
Buying Options
Total Price: USD $1.26
Unit Price: USD $1.257757
≥1 USD $1.257757
≥10 USD $1.186561
≥100 USD $1.119395
≥500 USD $1.056037
≥1000 USD $0.996261
Inventory: 3241
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Contact Shape Rectangular
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Housing Material Thermoplastic
Technical
Packaging Bulk
Published 2005
Series Mini-Match
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 12
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Number of Rows 1
Voltage - Rated 300V
Contact Finish - Mating Tin
Contact Type Tab
Orientation Vertical
Terminal Pitch 2.4892mm
Depth 6.3mm
Insulation Height 0.118 3.00mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.098 2.50mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.126 3.20mm
Shrouding Unshrouded
Number Of PCB Rows 1
Body Breadth 0.248 inch
Contact Gender Male
Housing Color Green
Overall Contact Length 0.358 9.09mm
Contact Resistance 10mOhm
Mating Contact Pitch 0.098 inch
ELV Compliant
Max Voltage Rating (AC) 250V
Wire/Cable Type Discrete
Durability 25 Cycles
Max Voltage Rating (DC) 300.25kV
Insertion Force-Max 4.8928 N
Withdrawl Force-Min .0973 N
Sealable No
Dimensions
Length 30mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
