1-5102156-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

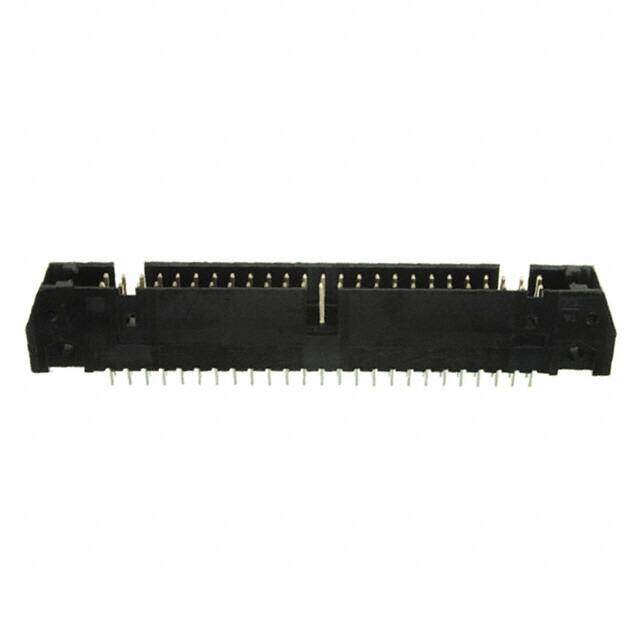

CONN HEADER VERT 50POS .100 GOLD
PDF
/
Buying Options
Total Price: USD $3.44
Unit Price: USD $3.4408
≥1 USD $3.4408
≥10 USD $3.04832
≥100 USD $2.72008
≥500 USD $2.235464
Inventory: 429
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 3.18mm
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Length 82.804mm
Height 13.97mm
Technical
Shrouded End Dimension 3.81 mm
Mating Connector Lock Without
Circuit Application Signal
Contact Current Rating 1A
Dielectric Withstanding Voltage 1000VAC V
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 250V
ELV Compliant
Mating Contact Pitch 0.1 inch
Insulation Resistance 5GOhm
Overall Contact Length 0.684 17.37mm
Operating Supply Voltage 250V
Body Depth 0.549 inch
Lead Length 3.94mm
UL Flammability Code 94V-0
Contact Gender Male
Body Breadth 0.336 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.240 6.10mm
Contact Finish - Post Tin
Lead Pitch 2.54mm
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.155 3.94mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.549 13.94mm
Orientation Vertical
Current Rating (Amps) 1A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold or Gold-Palladium
Fastening Type Push-Pull
Additional Feature MILITARY, CENTER AND DUAL POLARIZED
Voltage - Rated 250VAC
Number of Rows 2
Number of Positions 50
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Keying Slot, Mounting Flange
JESD-609 Code e3
Series AMP-Latch
Published 2007
Packaging Bulk
Operating Temperature -65°C~105°C
Physical
Housing Material Nylon
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold, Tin
Contact Material Bronze
