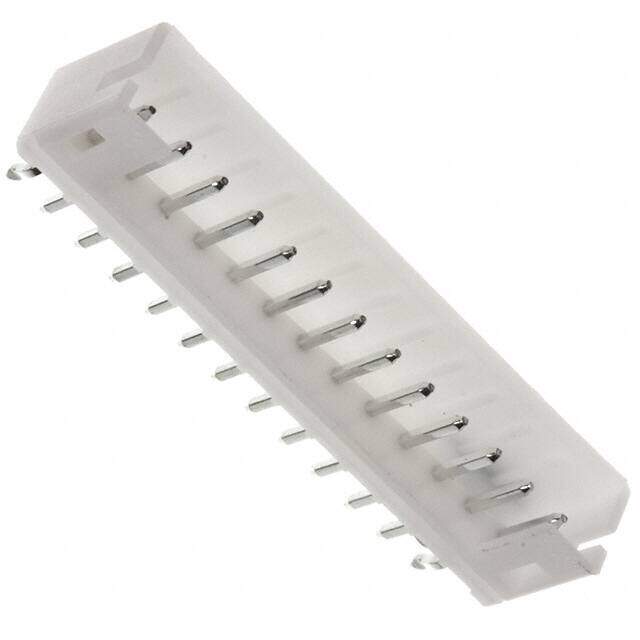

1-440054-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 13POS 2MM VERT T/H
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.5544
≥1 USD $0.5544
≥10 USD $0.53592
≥100 USD $0.405539
≥500 USD $0.335685
≥1000 USD $0.292882
≥3000 USD $0.278828
Inventory: 14747
Minimum: 1
-
+
Technical Details
Technical
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Depth 4.7mm
Insulation Height 0.238 6.05mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.079 2.00mm
Insulation Color Natural
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.134 3.40mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 1
Contact Length - Mating 0.132 3.35mm
PCB Contact Pattern RECTANGULAR
Contact Gender Male
UL Flammability Code 94V-0
Lead Length 3.4036mm
Operating Supply Voltage 250V
Rated Current (Signal) 3A
Overall Contact Length 0.335 8.51mm
Contact Style Straight
Contact Resistance 20mOhm
Mating Contact Pitch 0.079 inch
ELV Compliant
Polarization Key POLARIZED HOUSING
Wire/Cable Type Discrete
MIL Conformance NO
Contact Finish - Mating Tin
HTS Code 8536.69.40.40
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Number of Positions 13
Connector Type Header
ECCN Code EAR99
Termination Press-Fit, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series High Performance Interconnect (HPI)
Published 2006
Packaging Bulk
Operating Temperature -25°C~85°C
Durability 30 Cycles
Wire/Cable Gauge 24 AWG
Insertion Force-Max 48.0384 N
Sealable No
Contact Current Rating 3A
Mating Retention Without
Insulation Diameter 900 μm
Mating Post Length 3.3274mm
Physical
PCB Mount Retention With
PCB Mounting Orientation Vertical
Housing Material Nylon
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Brass, Tin
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 13 Weeks
Dimensions
Height 6.0452mm
Length 28.00096mm
Width 4.7mm
Contact Finish Thickness - Mating 80.0μin 2.03μm
Contact Finish Thickness - Post 80.0μin 2.03μm
Length - Tail 3.4mm
PCB Thickness 1.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Alternative Model
