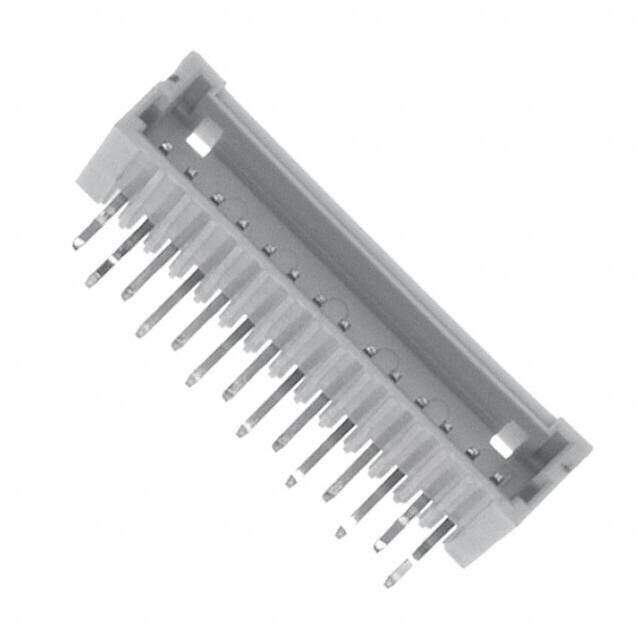

1-292206-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 14POS R/A 1.5MM TIN
PDF
/
Buying Options
Total Price: USD $0.52
Unit Price: USD $0.5192
≥1 USD $0.5192
≥10 USD $0.4972
≥100 USD $0.468714
≥500 USD $0.38559
Inventory: 8632
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 25 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled
Housing Material Nylon
Shape Rectangular
PCB Mounting Orientation Right Angle
PCB Mount Retention With
Technical
Operating Temperature -30°C~105°C
Packaging Tray
Published 2004
Series Mini CT
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
Connector Type Header
Number of Positions 14
Color Grey
Applications General Purpose
Number of Rows 1
Voltage - Rated 50VAC
Fastening Type Detent Lock
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Current Rating (Amps) Varies by WireGAuge
Orientation Right Angle
Depth 8.45mm
Insulation Height 0.193 4.90mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 2A
Pitch - Mating 0.059 1.50mm
Insulation Color Gray
Approval Agency UL
Contact Length - Post 0.118 3.00mm
Shrouding Shrouded - 4 Wall
Contact Length - Mating 0.094 2.40mm
Contact Gender Male
UL Flammability Code 94V-0
Housing Color Natural
Operating Supply Voltage 50V
Contact Resistance 30mOhm
ELV Compliant
Max Voltage Rating (AC) 50V
Wire/Cable Type Discrete
Wire/Cable Gauge 22 AWG
Max Voltage Rating (DC) 5.05kV
Sealable No
Contact Current Rating 2A
Insulation Diameter 1.0414 mm
Mating Post Length 2.4mm
Dimensions
Height 8.4328mm
Length 23.5mm
Width 4.8768mm
Plating Thickness 2μm
Length - Tail 3mm
PCB Thickness 1.6002mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
