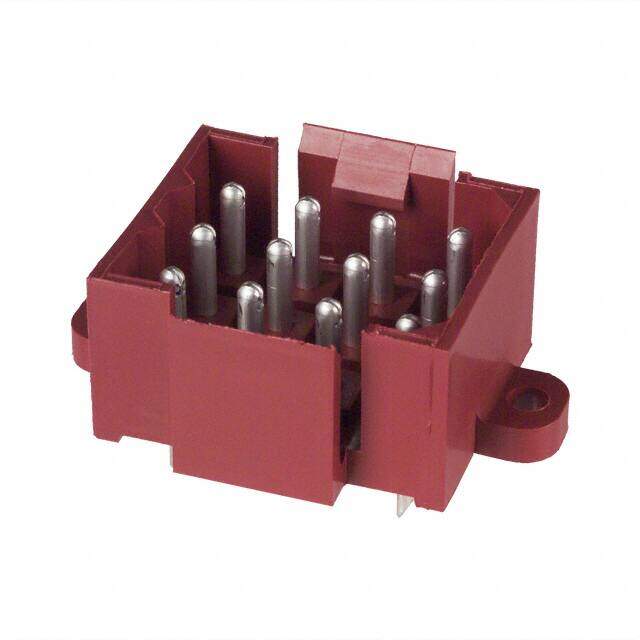

1-207120-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER PIN 12POS VERT TIN
PDF
/
Inventory: 9509
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyamide (PA), Nylon
Housing Material Thermoplastic
Technical
Operating Temperature -55°C~130°C
Packaging Tray
Published 2008
Series Metrimate
Feature Mounting Flange
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 12
Color Red
Applications Automotive, General Purpose, Industrial
Number of Rows 3
Gender Male
Voltage - Rated 600V
Fastening Type Latch Lock
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Current Rating (Amps) 7.5A
Insulation Height 0.464 11.79mm
Style Board to Board or Cable
Number of Positions Loaded 10
Current Rating 14A
Pitch - Mating 0.197 5.00mm
Insulation Color Black, Red
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Body Length or Diameter 1.28 inch
Row Spacing - Mating 0.197 (5.00mm)
Contact Length - Post 0.181 4.60mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 3
PCB Contact Pattern RECTANGULAR
Body Breadth 0.954 inch
UL Flammability Code 94V-0
Empty Shell NO
Body Depth 0.464 inch
Mating Contact Pitch 0.197 inch
ELV Compliant
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 2000VAC V
Durability 250 Cycles
Insertion Force-Max 4.8928 N
Withdrawl Force-Min .278 N
Dimensions
Plating Thickness 150μin
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 150.0μin 3.81μm
Length - Termination 0.181 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Not Applicable
