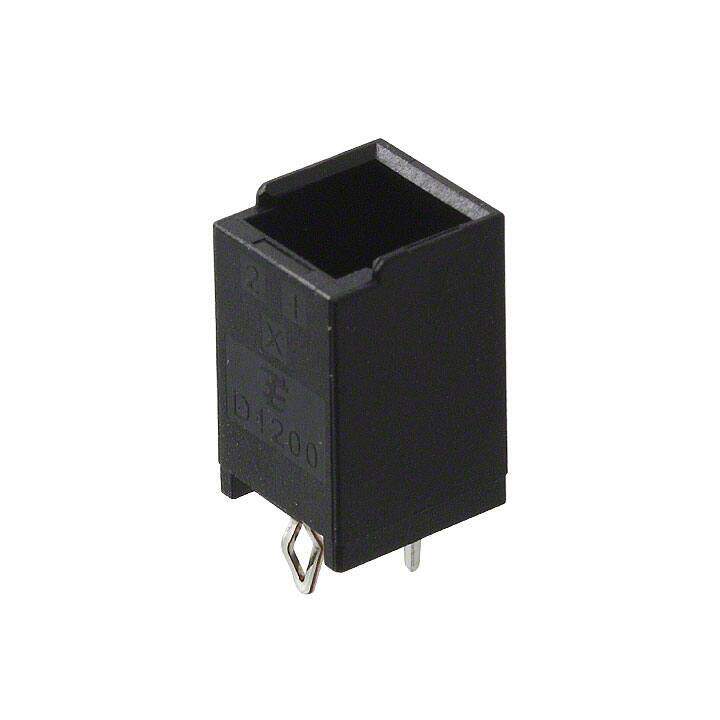

1-1871468-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 2POS KEY-X VERT T/H
PDF
/
Buying Options
Total Price: USD $0.87
Unit Price: USD $0.8712
≥1 USD $0.8712
≥10 USD $0.77469
≥100 USD $0.699098
≥500 USD $0.665271
Inventory: 35180
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Copper Alloy
Contact Plating Gold, Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Thermoplastic, Polyester, Glass Filled
Housing Material Polyester
PCB Mounting Orientation Vertical
Technical
Operating Temperature -55°C~105°C
Packaging Tube
Published 2007
Series Dynamic D-1200
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 2
Applications General Purpose, Industrial
Number of Rows 1
Gender Male
Fastening Type Detent Lock
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Shielding Unshielded
Depth 8mm
Insulation Height 0.490 12.44mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.098 2.50mm
Insulation Color Black
Approval Agency UL
Contact Length - Post 0.120 3.05mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
UL Flammability Code 94V-0
Empty Shell NO
Operating Supply Voltage 250V
Contact Style Straight
ELV Compliant
Max Voltage Rating (AC) 250V
Sealable No
Contact Current Rating 5A
Halogen Free Halogen Free
Mating Retention With
Contact Retention Without
Preloaded Yes
Dimensions
Height 12.446mm
Length 7.5946mm
Width 8mm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 78.7μin 2.00μm
Length - Tail 3.05mm
PCB Thickness 1.6002mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
