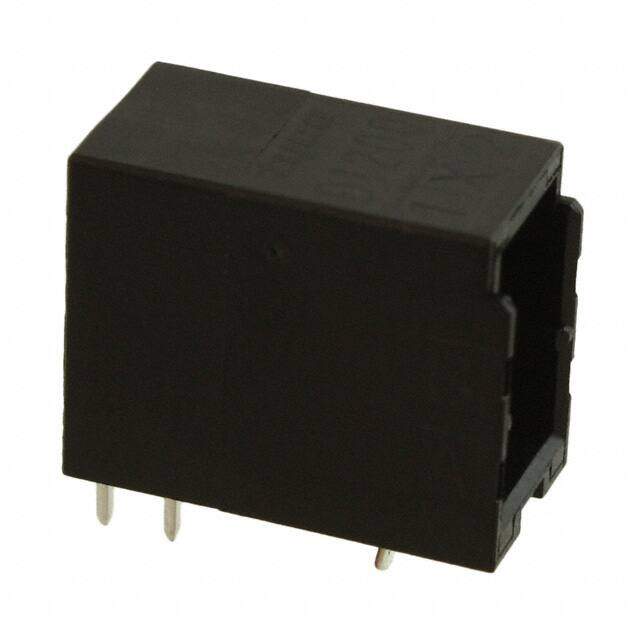

1-1827876-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HDR R/A 4POS DUAL KEY X AU
PDF
/
Buying Options
Total Price: USD $2
Unit Price: USD $1.9976
≥1 USD $1.9976
≥10 USD $1.751922
≥100 USD $1.607443
≥500 USD $1.453927
≥1000 USD $1.300394
≥3000 USD $1.146878
Inventory: 13067
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Copper Alloy
Contact Plating Gold, Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Thermoplastic, Polyester, Glass Filled
Housing Material Polyester
PCB Mounting Orientation Right Angle
PCB Mount Retention With
Technical
Operating Temperature -55°C~105°C
Packaging Tube
Published 2007
Series Dynamic D-1200
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Termination Solder
Connector Type Header
Number of Positions 4
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Black
Applications General Purpose, Industrial
Number of Rows 2
Gender Male
Voltage - Rated 250V
Fastening Type Detent Lock
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 5A
Pitch 2.4892mm
Orientation Right Angle
Shielding Unshielded
Depth 15mm
Insulation Height 0.465 11.80mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.098 2.50mm
Insulation Color Black
Voltage - Rated AC 250V
Approval Agency UL
Row Spacing - Mating 0.130 (3.30mm)
Contact Length - Post 0.122 3.10mm
Shrouding Shrouded - 4 Wall
Number of Contacts 4
Contact Finish - Post Tin
Contact Gender Male
Housing Color Black
Lead Length 3.1mm
Operating Supply Voltage 250V
ELV Compliant
Max Voltage Rating (AC) 250V
Number of Ports 1
Sealable No
Contact Current Rating 5A
Halogen Free Halogen Free
Mating Retention Without
Contact Retention Without
Mating Alignment With
Preloaded Yes
VDE Tested No
Dimensions
Height 11.8mm
Length 7.5946mm
Width 9.3472mm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 78.7μin 2.00μm
Length - Tail 3.1mm
PCB Thickness 1.6002mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
