1-178138-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

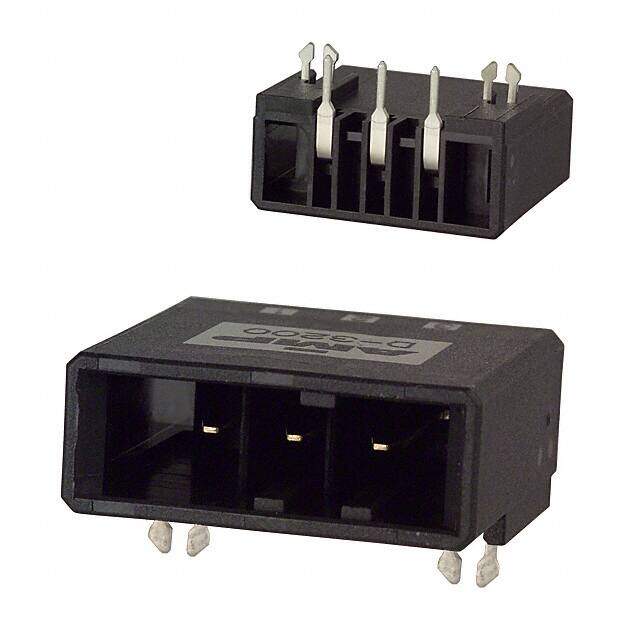

CONN HDR 3POS R/A KEY-X 15GOLD
PDF
/
Buying Options
Total Price: USD $2.03
Unit Price: USD $2.0328
≥1 USD $2.0328
≥10 USD $1.81588
≥100 USD $1.640672
≥500 USD $1.327304
≥1000 USD $1.170611
Inventory: 4410
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Material Copper Alloy
Contact Plating Gold, Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Number of Pins 3
Contact Shape Rectangular
Insulation Material Thermoplastic, Polyester, Glass Filled
Housing Material Polyester
PCB Mounting Orientation Right Angle
PCB Mount Retention With
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2007
Series Dynamic D-3200
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
Termination Solder
Connector Type Header
Number of Positions 3
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Color Black
Applications General Purpose, Industrial
Number of Rows 1
Gender Male
Voltage - Rated 600V
Fastening Type Detent Lock
Contact Finish - Mating Gold
Contact Type Tab
Pitch 5.08mm
Orientation Right Angle
Shielding Unshielded
Depth 22.1mm
Insulation Height 0.368 9.35mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 12A
Pitch - Mating 0.200 5.08mm
Insulation Color Black
Approval Agency UL
Contact Length - Post 0.150 3.81mm
Shrouding Shrouded - 4 Wall
Number of Contacts 3
Contact Finish - Post Tin
Contact Gender Male
Housing Color Black
Operating Supply Voltage 600V
Row Spacing 7.62 mm
Max Voltage Rating (AC) 600V
Number of Ports 1
Sealable No
Contact Current Rating 12A
Halogen Free Halogen Free
Mating Retention With
Contact Retention Without
Mating Alignment With
Preloaded Yes
VDE Tested No
Dimensions
Height 11.45mm
Length 24.16mm
Width 9.3472mm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Length - Tail 3.8mm
PCB Thickness 1.6002mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
