1-1744037-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

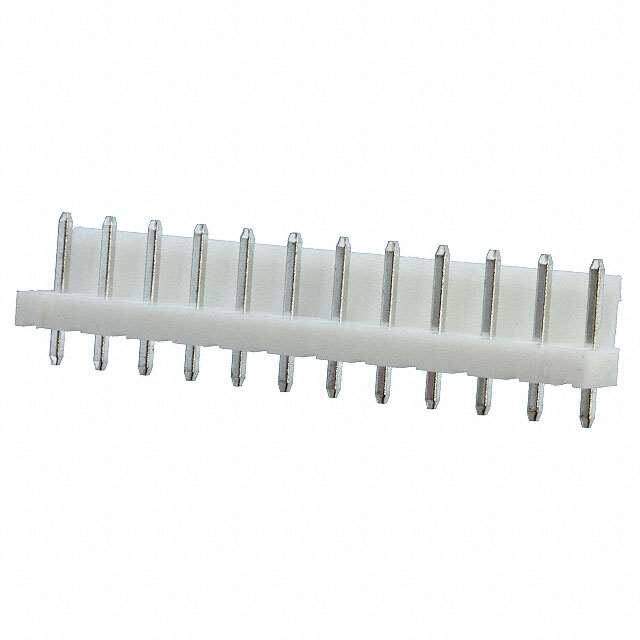

Conn Unshrouded Header HDR 12 POS 5.08mm Solder ST Thru-Hole
PDF
/
Buying Options
Total Price: USD $0.92
Unit Price: USD $0.924
≥1 USD $0.924
≥10 USD $0.86592
≥100 USD $0.656797
≥500 USD $0.588289
≥1000 USD $0.531881
≥3000 USD $0.498687
Inventory: 480
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 63μm
Contact Finish Thickness - Post 120.0μin 3.05μm
Contact Finish Thickness - Mating 120.0μin 3.05μm
Plating Thickness 120μm
Width 8.2042mm
Length 58.48mm
Height 10.89914mm
Technical
Contact Retention Without
Number of Power Positions 12
Circuit Application Power
Contact Current Rating 8A
Sealable No
Plating Tin
ELV Compliant
Overall Contact Length 0.575 14.60mm
Operating Supply Voltage 250V
Housing Color Natural
Contact Length - Mating 0.303 7.70mm
Contact Finish - Post Tin
Number of Contacts 12
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.146 3.70mm
Insulation Color Natural
Pitch - Mating 0.200 5.08mm
Current Rating 8A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.126 3.20mm
Orientation Vertical
Pitch 5.08mm
Current Rating (Amps) 7.5A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Friction Lock
Voltage - Rated 250VAC
Number of Rows 1
Applications General Purpose, Industrial, Lighting
Color Natural
Min Operating Temperature -25°C
Max Operating Temperature 105°C
Number of Positions 12
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Economy Power
Published 2008
Packaging Bulk
Operating Temperature -25°C~105°C
Physical
PCB Mounting Orientation Vertical
Housing Material Nylon
Material Nylon
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 25 Weeks
Alternative Model
