Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

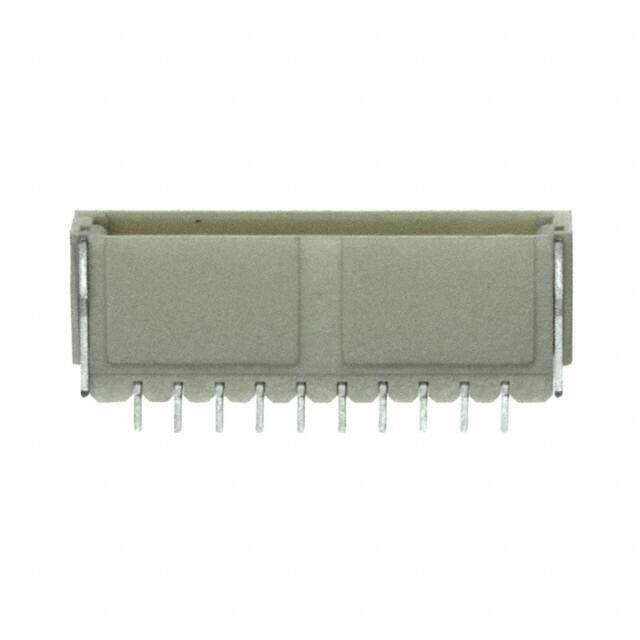

CONN HEADER R/A 10POS 1MM SMD
PDF
/
Buying Options
Total Price: USD $1.35
Unit Price: USD $1.3464
≥1 USD $1.3464
≥10 USD $1.2012
≥100 USD $1.08548
≥500 USD $1.073582
Inventory: 1233
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 120.0μin 3.05μm
Contact Finish Thickness - Mating 120.0μin 3.05μm
Width 4.95mm
Length 12.3mm
Height 2.8956mm
Technical
Mating Retention Without
Contact Current Rating 800mA
Sealable No
Withdrawl Force-Min 5.7824 N
Wire/Cable Gauge 28 AWG
Durability 50 Cycles
Wire/Cable Type Discrete
Dielectric Withstanding Voltage 500VAC V
Polarization Key POLARIZED HOUSING
Plating Nickel
ELV Compliant
Mating Contact Pitch 0.039 inch
Operating Supply Voltage 50V
Lead Length 711.2μm
UL Flammability Code 94V-0
Contact Gender Male
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Shrouding Shrouded - 4 Wall
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.039 1.00mm
Current Rating 800mA
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.114 2.90mm
Depth 4.25mm
Orientation Right Angle
Total Number of Contacts 10
Current Rating (Amps) 1A
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Additional Feature SIDE ENTRY
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Number of Positions 10
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Solder Retention
Series High Performance Interconnect (HPI)
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -55°C~105°C
Physical
PCB Mount Retention With
PCB Mounting Orientation Right Angle
Housing Material Thermoplastic
Insulation Material Thermoplastic, Glass Filled
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Plating Nickel, Tin
Contact Material Phosphor Bronze
