1-1586863-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

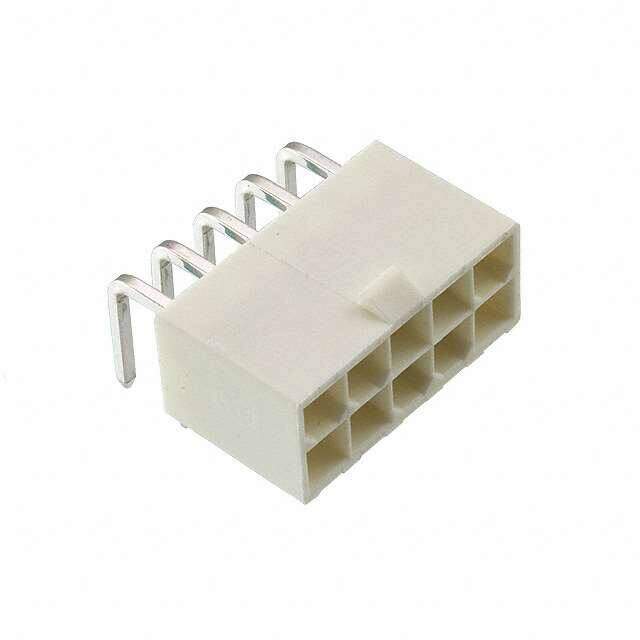

Pin & Socket Connectors 10P VAL-U-LOK R/A HDR GW
PDF
/
Inventory: 5231
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 months ago)
Physical
Contact Material Brass
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Number of Pins 10
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Housing Material Polyamide
PCB Mounting Orientation Right Angle
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Published 2008
Series VAL-U-LOK
Feature Glow Wire Compliant
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 10
Termination Solder
Connector Type Header
Number of Positions 10
Max Operating Temperature 221°C
Min Operating Temperature -40°C
Color White
Applications General Purpose, Industrial, Lighting
Number of Rows 2
Voltage - Rated 600VAC
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 9A
Pitch 4.2mm
Orientation Right Angle
Insulation Height 0.402 10.20mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 9A
Pitch - Mating 0.165 4.20mm
Insulation Color White
Approval Agency CSA
Row Spacing - Mating 0.165 (4.20mm)
Shrouding Shrouded - 4 Wall
Number of Contacts 10
Contact Finish - Post Tin
Housing Color White
Operating Supply Voltage 600V
ELV Compliant
Max Voltage Rating (AC) 600V
Plating Tin
Number of Ports 1
Sealable No
Contact Current Rating 9A
Circuit Application Power
Number of Power Positions 10
Insulation Diameter 3.0988 mm
Number of Signal Positions 0
Contact Retention Without
VDE Tested No
Dimensions
Height 9.8044mm
Length 22.2mm
Width 12.99972mm
PCB Thickness 63μm
Compliance
Material Flammability Rating UL94 V-2
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
