1-147323-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 13 MTE HDR SRRA SMT.100CL
PDF
/
Inventory: 8818
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Connector Type Header
Number of Positions 13
Color Black
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 3A
Pitch 2.54mm
Orientation Right Angle
Insulation Height 0.200 5.08mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Shrouding Shrouded - 4 Wall
Number of Contacts 13
Contact Finish - Post Tin-Lead
Contact Length - Mating 0.230 5.84mm
Housing Color Black
Row Spacing 2.54 mm
ELV Non-Compliant
Plating Gold
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock, Keying Slot, Solder Retention
Series AMPMODU MTE
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -65°C~105°C
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Physical
PCB Mount Retention With
PCB Mounting Orientation Right Angle
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Plating Gold
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 42 Weeks

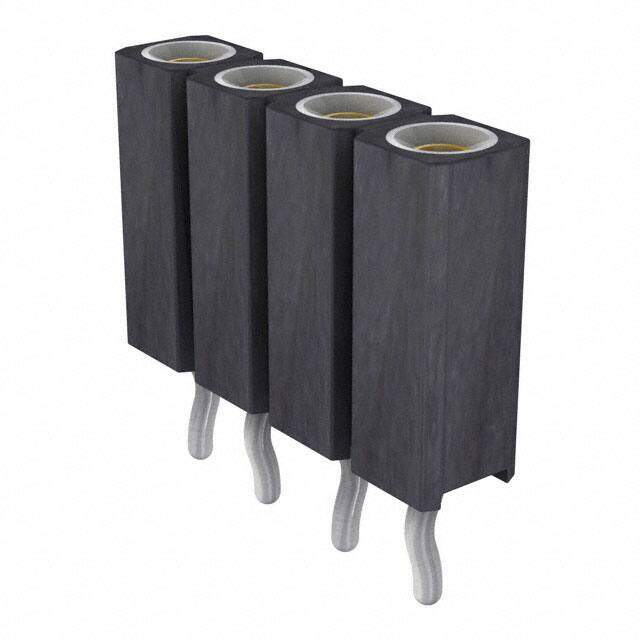

Alternative Model
