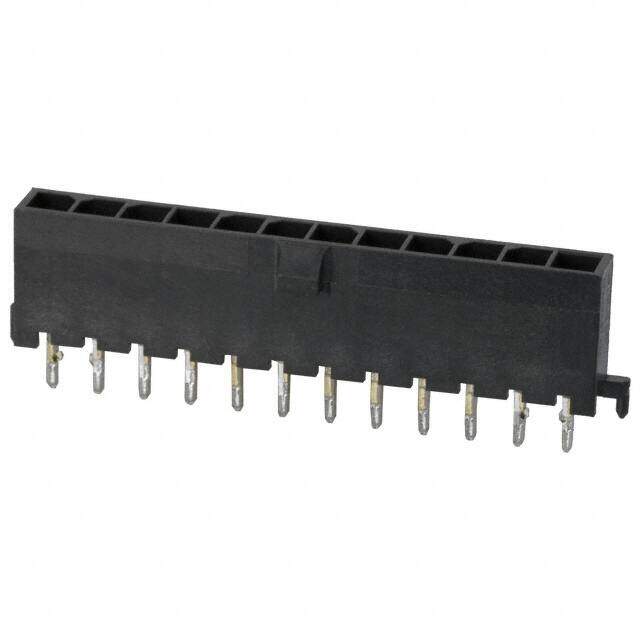

1-1445050-2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Pin & Socket Connectors MICRO MNL HDR ASSM SINGLE ROW
PDF
/
Inventory: 8934
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Brass
Contact Plating Lead, Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Published 2008
Series Micro MATE-N-LOK
JESD-609 Code e0
Feature Board Guide
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit, Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 12
Applications General Purpose
Number of Rows 1
Gender Male
Voltage - Rated 250V
HTS Code 8536.69.40.30
Fastening Type Locking Ramp
Contact Finish - Mating Tin-Lead
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Current Rating (Amps) Varies by WireGAuge
Orientation Vertical
Terminal Pitch 2.9972mm
Insulation Height 0.364 9.25mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.118 3.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.125 3.18mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 1
Lead Pitch 3mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.223 inch
UL Flammability Code 94V-0
Lead Length 3.18mm
Empty Shell NO
Body Depth 0.364 inch
Contact Resistance 20mOhm
ELV Non-Compliant
Polarization Key POLARIZED HOUSING
Insertion Force-Max 6.672 N
Dimensions
Length 37mm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
Alternative Model
