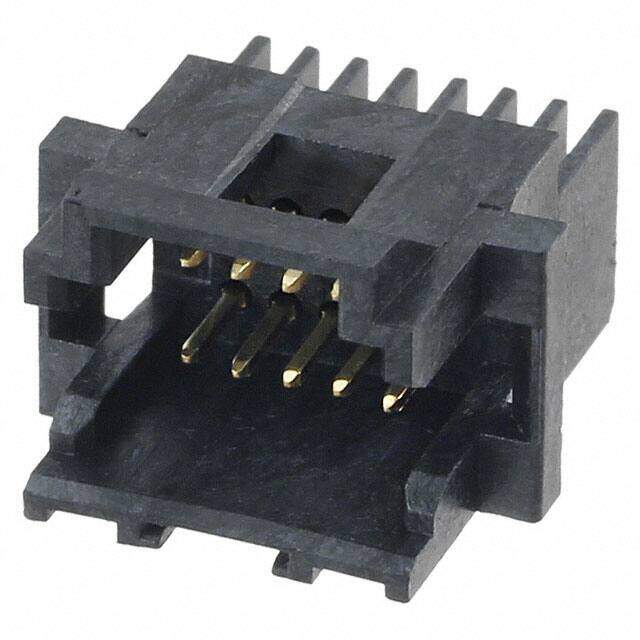

1-104477-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Shrouded Header HDR 10 POS 1.27mm Solder RA Thru-Hole Tube
PDF
/
Buying Options
Total Price: USD $6.5
Unit Price: USD $6.498855
≥1 USD $6.498855
≥200 USD $2.592978
≥480 USD $2.507639
≥1000 USD $2.464313
Inventory: 3622
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 23 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Circular
Insulation Material Thermoplastic
PCB Mounting Orientation Right Angle
Technical
Operating Temperature -65°C~105°C
Packaging Tube
Published 2009
Series AMPMODU System 50
JESD-609 Code e0
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 10
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 2
Gender Male
Voltage - Rated 30VAC
Additional Feature AMPMODU, SHROUDED
HTS Code 8536.69.40.40
Fastening Type Latch Holder
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Orientation Right Angle
Insulation Height 0.290 7.37mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Approval Agency CSA
Body Length or Diameter 0.494 inch
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.145 3.68mm
Shrouding Shrouded - 2 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin-Lead
Contact Length - Mating 0.125 3.18mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.35 inch
UL Flammability Code 94V-0
Lead Length 3.68mm
Body Depth 0.54 inch
Operating Supply Voltage 30V
Rated Current (Signal) 3.6A
Contact Resistance 15mOhm
Mating Contact Pitch 0.05 inch
ELV Non-Compliant
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 500VAC V
Insertion Force-Max 1.39 N
Contact Current Rating 1A
Mating Post Length 3.175mm
Keyed No
Dimensions
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 150.0μin 3.81μm
Length - Termination 0.145 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Alternative Model
