1-103669-4
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

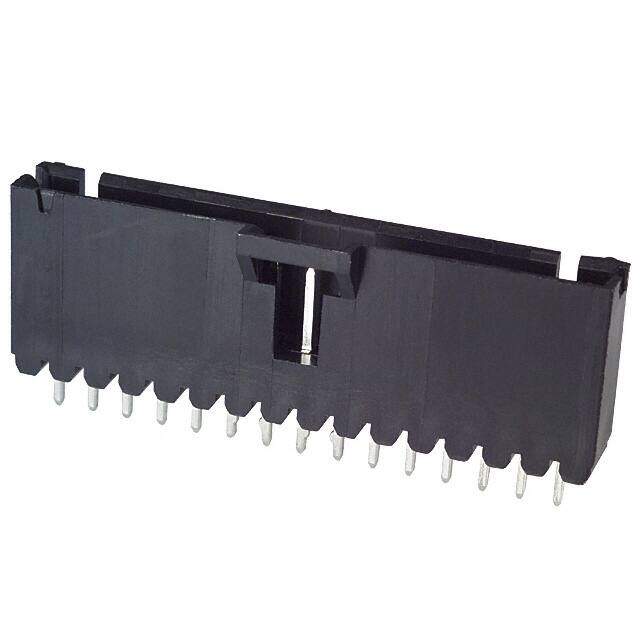

CONN HEADER VERT 15POS PCB TIN
PDF
/
Inventory: 7100
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Contact Plating Lead, Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Thermoplastic
Technical
Operating Temperature -65°C~105°C
Packaging Tube
Published 2011
Series AMPMODU MTE
Feature Keying Slot
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit, Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 15
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Gender Male
Additional Feature AMPMODU, POLARIZATION
HTS Code 8536.69.40.40
Fastening Type Latch Holder
Contact Finish - Mating Tin-Lead
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Terminal Pitch 2.54mm
Insulation Height 0.535 13.60mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Contact Length - Post 0.130 3.30mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 1
Contact Length - Mating 0.230 5.84mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.2 inch
Body Depth 0.535 inch
Rated Current (Signal) 3A
Overall Contact Length 0.545 13.84mm
Insulation Resistance 5GOhm
ELV Non-Compliant
Polarization Key DUAL POLARIZED
Dielectric Withstanding Voltage 750VAC V
Contact Current Rating 3A
Dimensions
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
