1-103361-8
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

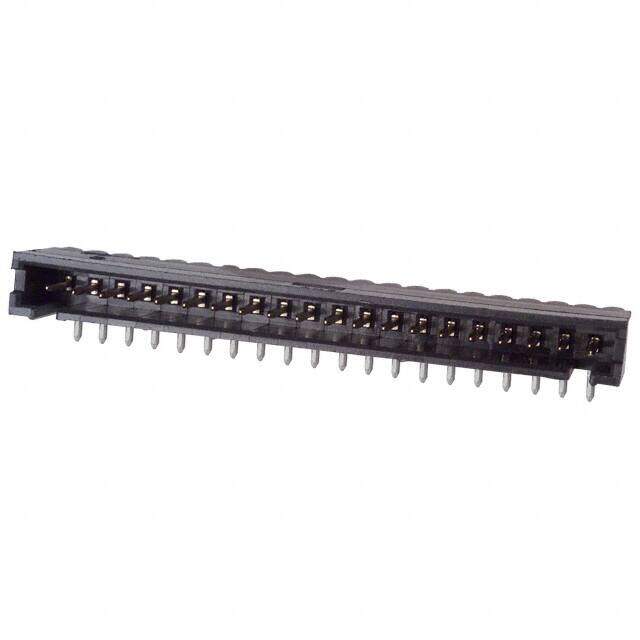

CONN HEADER R/A .100 20POS 30AU
PDF
/
Inventory: 7314
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.397mm
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Technical
Shrouded End Dimension 1.778 mm
High Temperature Housing No
Mating Post Length 6.1mm
Contact Current Rating 3A
Polarization Key POLARIZED HOUSING
ELV Non-Compliant
Row Spacing 2.54 mm
Insulation Resistance 5GOhm
Rated Current (Signal) 3A
Body Depth 0.549 inch
Lead Length 2.794mm
Housing Color Black
UL Flammability Code 94V-0
Body Breadth 0.229 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.240 6.10mm
Contact Finish - Post Tin-Lead
Number Of PCB Rows 1
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.110 2.79mm
Approval Agency CSA
Reliability COMMERCIAL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.214 5.44mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature AMPMODU, SHROUDED
Gender Male
Number of Rows 1
Number of Positions 20
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e0
Series AMPMODU Mod II
Published 2009
Packaging Tube
Operating Temperature -65°C~105°C
Physical
PCB Mounting Orientation Right Angle
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 12 Weeks
Alternative Model
