1-103080-4
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

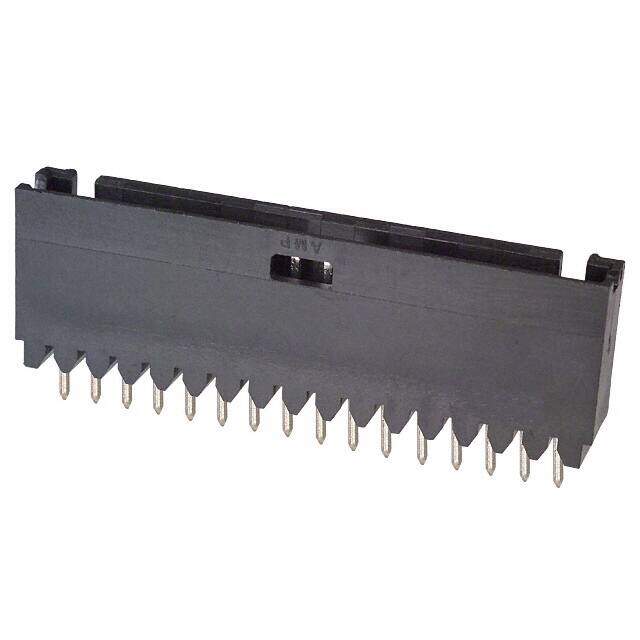

CONN HEADER VERT 16POS PCB TIN
PDF
/
Buying Options
Total Price: USD $2.36
Unit Price: USD $2.362691
≥1 USD $2.362691
≥10 USD $2.228953
≥100 USD $2.102786
≥500 USD $1.983763
≥1000 USD $1.871471
Inventory: 8532
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Brass
Contact Plating Lead, Nickel, Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Thermoplastic
Technical
Operating Temperature -65°C~105°C
Packaging Tube
Published 2009
Series AMPMODU Mod II
JESD-609 Code e0
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 16
Number of Rows 1
Gender Male
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Tin-Lead
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Vertical
Insulation Height 0.549 13.94mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reliability COMMERCIAL
Approval Agency CSA
Contact Length - Post 0.130 3.30mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 1
Contact Length - Mating 0.240 6.10mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.227 inch
UL Flammability Code 94V-0
Lead Length 3.302mm
Body Depth 0.549 inch
Rated Current (Signal) 3A
Overall Contact Length 0.589 14.96mm
Insulation Resistance 5GOhm
Row Spacing 2.54 mm
ELV Non-Compliant
Polarization Key DUAL POLARIZED
Dielectric Withstanding Voltage 750VAC V
Contact Current Rating 3A
Mating Post Length 6.1mm
High Temperature Housing No
Shrouded End Dimension 1.778 mm
Dimensions
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
PCB Thickness 1.397mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
