1-103080-2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

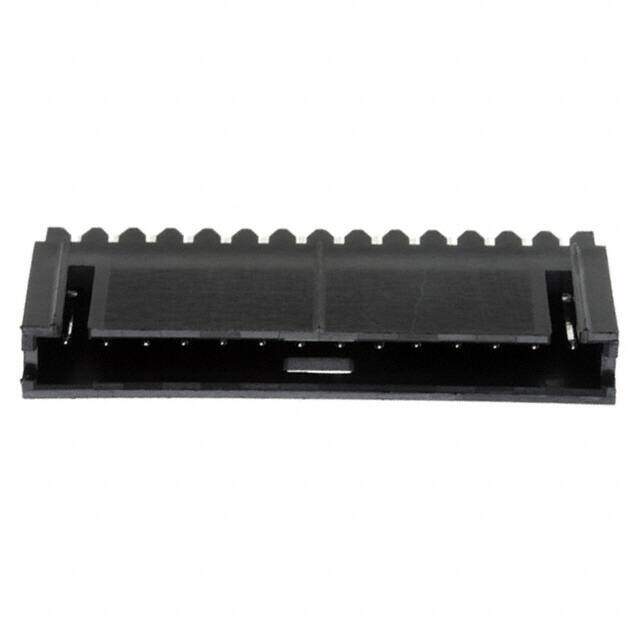

CONN HEADER VERT 14POS PCB TIN
PDF
/
Inventory: 6885
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Brass
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Thermoplastic
Technical
Operating Temperature -65°C~105°C
Packaging Tube
Published 2006
Series AMPMODU Mod II
JESD-609 Code e0
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 14
Number of Rows 1
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Tin-Lead
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Vertical
Depth 5.76mm
Insulation Height 0.549 13.94mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Approval Agency CSA
Contact Length - Post 0.130 3.30mm
Shrouding Shrouded - 4 Wall
Contact Length - Mating 0.240 6.10mm
UL Flammability Code 94V-0
Lead Length 3.302mm
Overall Contact Length 0.589 14.96mm
Insulation Resistance 5GOhm
Row Spacing 2.54 mm
ELV Non-Compliant
Contact Current Rating 3A
Mating Post Length 6.1mm
High Temperature Housing No
Shrouded End Dimension 1.778 mm
Dimensions
Length 38.61mm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
PCB Thickness 1.397mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
