1-102617-5
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

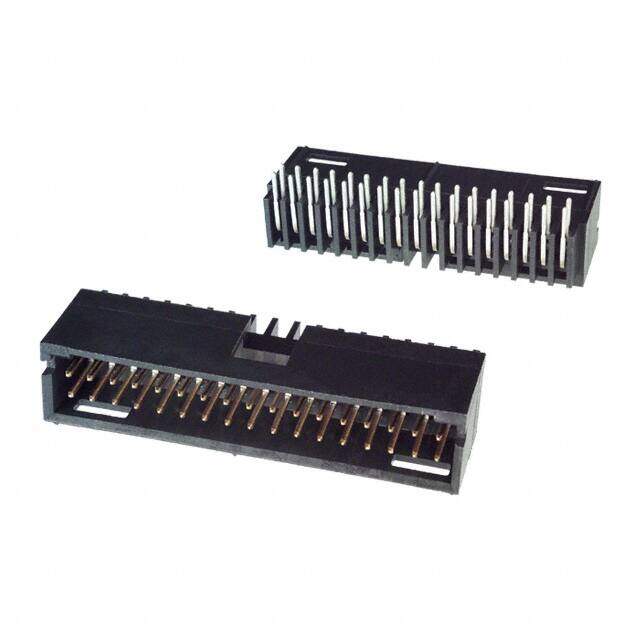

CONN HEADER R/A .100 34POS 15AU
PDF
/
Inventory: 2619
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
High Temperature Housing No
Shrouded End Dimension 1.68 mm
Mating Post Length 8.08mm
Contact Current Rating 3A
Dielectric Withstanding Voltage 1050VAC V
Polarization Key CTR W/GUIDE SLOTS
ELV Non-Compliant
Mating Contact Pitch 0.1 inch
Insulation Resistance 5GOhm
Rated Current (Signal) 3A
Body Depth 0.639 inch
Lead Length 3.429mm
Housing Color Black
UL Flammability Code 94V-0
Body Breadth 0.413 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.318 8.08mm
Contact Finish - Post Tin-Lead
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.135 3.43mm
Row Spacing - Mating 0.100 (2.54mm)
Approval Agency CSA
Reliability COMMERCIAL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.400 10.16mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Detent Lock
HTS Code 8536.69.40.40
Additional Feature AMPMODU, SHROUDED
Gender Male
Number of Rows 2
Number of Positions 34
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e0
Series AMPMODU Mod II
Published 1998
Packaging Tray
Operating Temperature -65°C~105°C
Dimensions
Plating Thickness 15μin
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Length - Termination 0.135 inch
PCB Thickness 1.397mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
Physical
PCB Mounting Orientation Right Angle
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
