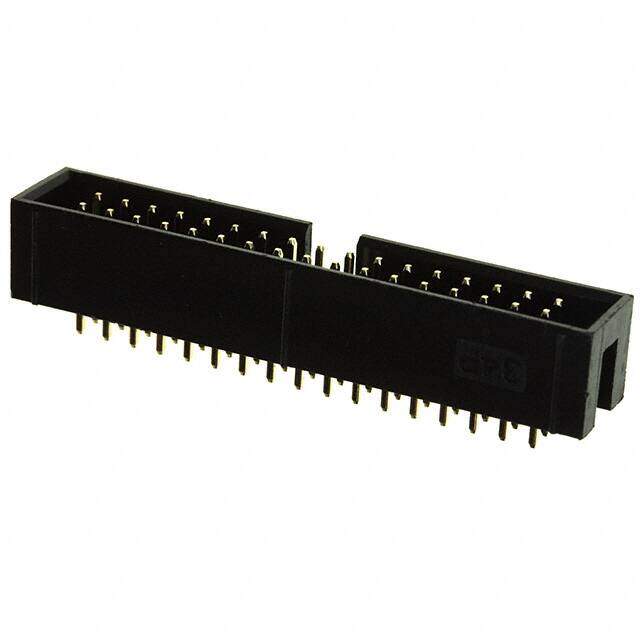

SBH11-PBPC-D17-ST-BK
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 34POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.6
Unit Price: USD $0.5984
≥1 USD $0.5984
≥10 USD $0.50776
≥100 USD $0.45628
≥500 USD $0.37334
≥1000 USD $0.331848
≥3000 USD $0.296296
Inventory: 21366
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Published 2009
Series SBH11
JESD-609 Code e4
Feature Keying Slot
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 34
Number of Rows 2
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3A
Insulation Height 0.358 9.10mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 1.995 inch
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.118 3.00mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.358 inch
UL Flammability Code 94V-0
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.1 inch
Polarization Key POLARIZED HOUSING
Dimensions
Contact Finish Thickness - Mating Flash
Length - Termination 0.118 inch
Stack Height (Mating) 9.65mm 11.2mm 13.35mm 18.35mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
