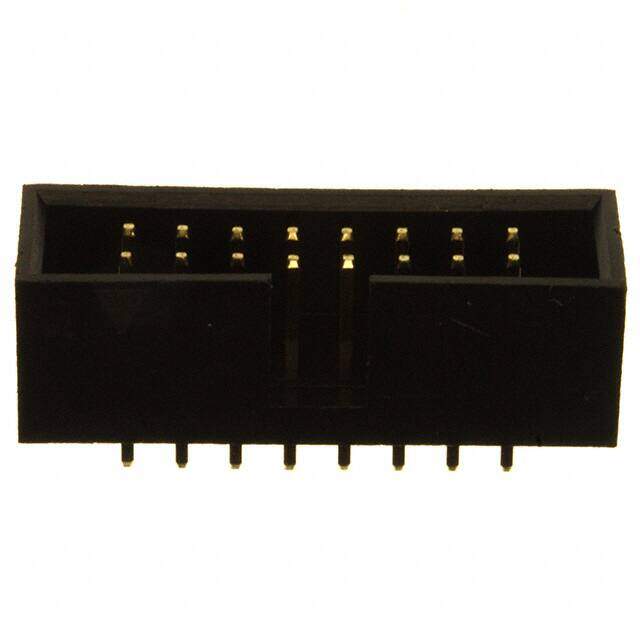

SBH11-PBPC-D08-ST-BK

Sullins Connector Solutions
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 16POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.37
Unit Price: USD $0.3696
≥1 USD $0.3696
≥10 USD $0.32384
≥100 USD $0.26708
≥500 USD $0.232241
≥1000 USD $0.191594
≥3000 USD $0.16837
Inventory: 6945
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Stack Height (Mating) 9.65mm 11.2mm 13.35mm 18.35mm
Length - Termination 0.118 inch
Contact Finish Thickness - Mating Flash

Technical

Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.1 inch
Insulation Resistance 1000000000Ohm
Body Depth 0.346 inch
UL Flammability Code 94V-0
Body Breadth 0.358 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.118 3.00mm
Row Spacing - Mating 0.100 (2.54mm)
Body Length or Diameter 1.095 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.358 9.10mm
Current Rating (Amps) 3A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Number of Rows 2
Number of Positions 16
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Keying Slot
JESD-609 Code e4
Series SBH11
Published 2013
Packaging Tray
Operating Temperature -40°C~105°C

Physical

Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass

Supply Chain

Factory Lead Time 5 Weeks
