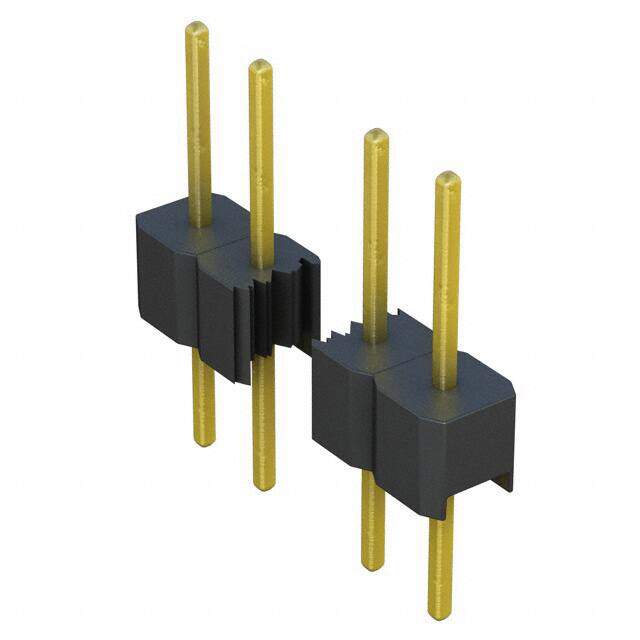

PRPN361PAEN
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 2MM SNGL STR 36POS
PDF
/
Inventory: 7339
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Dimensions
Contact Finish Thickness - Mating Flash
Width 2mm
Length 72mm
Height 2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
Technical
Dielectric Withstanding Voltage 500VAC V
Mating Contact Pitch 0.079 inch
Insulation Resistance 5000000000Ohm
Overall Contact Length 0.346 8.80mm
Body Depth 0.079 inch
Housing Color Black
Body Breadth 0.079 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.157 4.00mm
Lead Pitch 2mm
Number Of PCB Rows 1
Shrouding Unshrouded
Contact Length - Post 0.110 2.79mm
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.079 2.00mm
Terminal Pitch 2.0066mm
Current Rating (Amps) 1A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature NONE
Gender Male
Number of Rows 1
Number of Positions 36
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Published 2003
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Plastic
Insulation Material Polyester
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass
