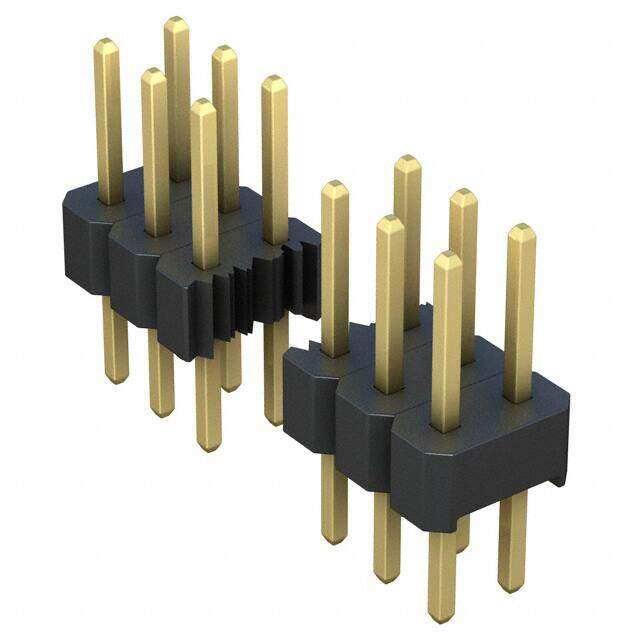

PRPN252PAEN
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 2MM DUAL STR 50POS
PDF
/
Inventory: 8769
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester
Housing Material Plastic
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2002
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 50
Number of Rows 2
Gender Male
Additional Feature NONE
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 1A
Insulation Height 0.079 2.00mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.110 2.79mm
Shrouding Unshrouded
Number Of PCB Rows 2
Lead Pitch 2mm
Contact Length - Mating 0.157 4.00mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.157 inch
Body Depth 0.079 inch
Overall Contact Length 0.346 8.80mm
Mating Contact Pitch 0.079 inch
Dimensions
Height 2mm
Length 50mm
Width 4mm
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
