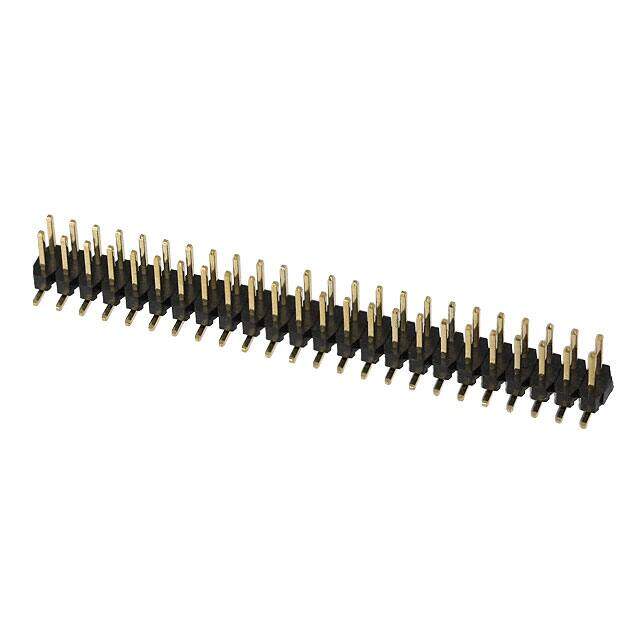

PRPN242MAMS
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 2MM DUAL SMD 48POS
PDF
/
Inventory: 4680
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyester
Housing Material Plastic
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2002
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 48
Number of Rows 2
Gender Male
Additional Feature NONE
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 1A
Total Number of Contacts 48
Insulation Height 0.059 1.50mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reliability COMMERCIAL
Row Spacing - Mating 0.079 (2.00mm)
Shrouding Unshrouded
Number Of PCB Rows 2
Lead Pitch 2mm
Contact Length - Mating 0.157 4.00mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.157 inch
Body Depth 0.087 inch
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.079 inch
Dielectric Withstanding Voltage 500VAC V
Dimensions
Height 1.5mm
Length 48mm
Width 4mm
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
