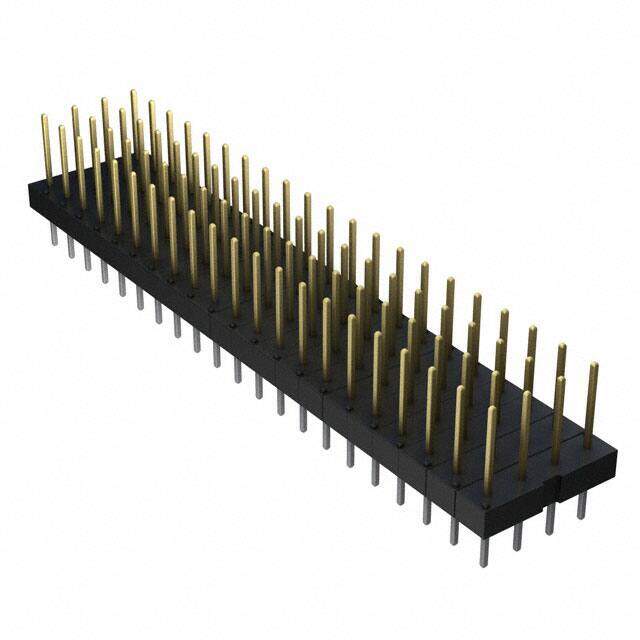

PRPN214RCCN
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 2MM QUAD STR 84POS
PDF
/
Inventory: 4815
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating Flash
Width 8mm
Length 42mm
Height 1.52mm
Technical
PCB Contact Row Spacing 2.0066 mm
Dielectric Withstanding Voltage 500VAC V
Mating Contact Pitch 0.079 inch
Insulation Resistance 5000000000Ohm
Overall Contact Length 0.328 8.32mm
Body Depth 0.06 inch
Body Breadth 0.315 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.173 4.40mm
Lead Pitch 2mm
Number Of PCB Rows 4
Shrouding Unshrouded
Contact Length - Post 0.094 2.40mm
Row Spacing - Mating 0.079 (2.00mm)
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.059 1.50mm
Terminal Pitch 2.0066mm
Current Rating (Amps) 1A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature NONE
Gender Male
Number of Rows 4
Number of Positions 84
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Published 2000
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Plastic
Insulation Material Polyester
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass
