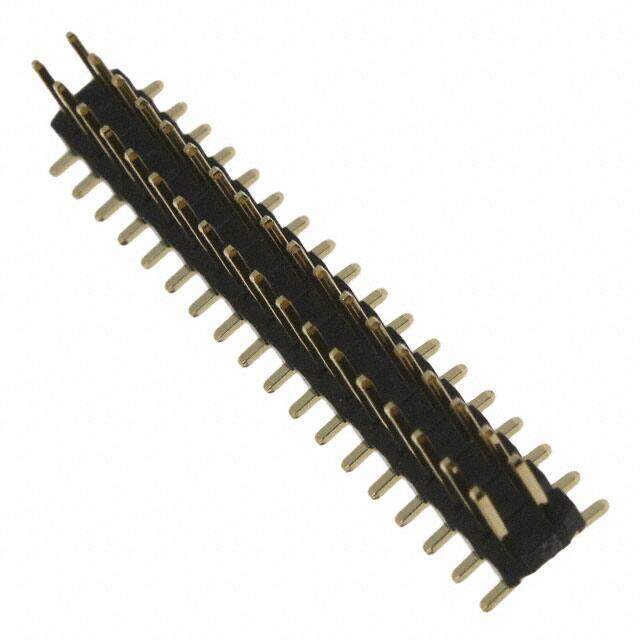

PRPN182MAMS
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 2MM DUAL SMD 36POS
PDF
/
Inventory: 5378
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating Flash
Width 4mm
Length 36mm
Height 1.5mm
Technical
Dielectric Withstanding Voltage 500VAC V
Mating Contact Pitch 0.079 inch
Insulation Resistance 5000000000Ohm
Body Depth 0.087 inch
Body Breadth 0.157 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.157 4.00mm
Lead Pitch 2mm
Number Of PCB Rows 2
Shrouding Unshrouded
Row Spacing - Mating 0.079 (2.00mm)
Reliability COMMERCIAL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.059 1.50mm
Total Number of Contacts 36
Current Rating (Amps) 1A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature NONE
Gender Male
Number of Rows 2
Number of Positions 36
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2002
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Plastic
Insulation Material Polyester
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Brass
