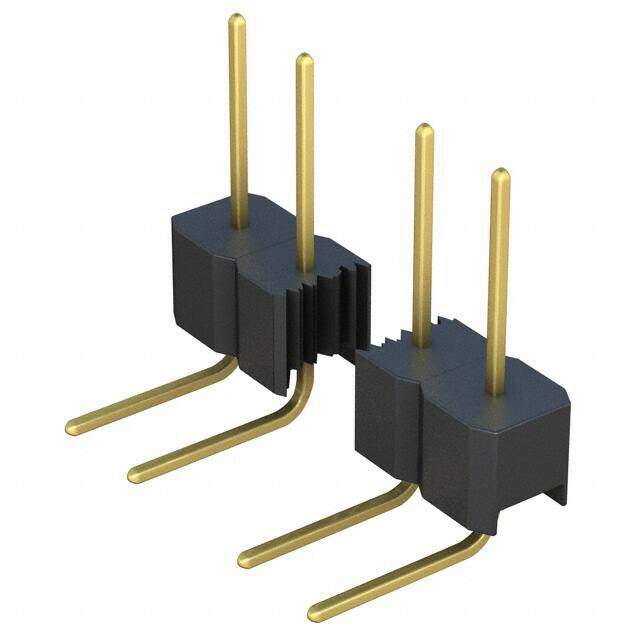

PRPN141PARN image
Favorite
PRPN141PARN image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER 2MM SNGL R/A 14POS
PDF
/
Inventory: 8746
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Mating Flash
Width 2mm
Length 28mm
Height 2mm

Technical

Dielectric Withstanding Voltage 500VAC V
Mating Contact Pitch 0.079 inch
Insulation Resistance 5000000000Ohm
Housing Color Black
Body Breadth 0.079 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.157 4.00mm
Lead Pitch 2mm
Number Of PCB Rows 1
Shrouding Unshrouded
Contact Length - Post 0.110 2.79mm
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.079 2.00mm
Terminal Pitch 2.0066mm
Current Rating (Amps) 1A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature NONE
Gender Male
Number of Rows 1
Number of Positions 14
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Published 2002
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Housing Material Plastic
Insulation Material Polyester
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Brass
