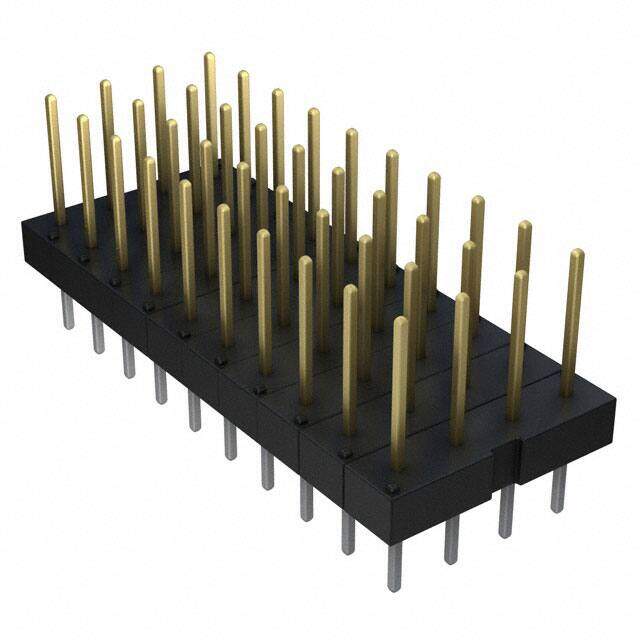

PRPN104RCCN
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 2MM QUAD STR 40POS
PDF
/
Inventory: 5318
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester
Housing Material Plastic
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2000
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 40
Number of Rows 4
Gender Male
Additional Feature NONE
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 1A
Terminal Pitch 2.0066mm
Insulation Height 0.059 1.50mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.094 2.40mm
Shrouding Unshrouded
Number Of PCB Rows 4
Lead Pitch 2mm
Contact Length - Mating 0.173 4.40mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.315 inch
Body Depth 0.06 inch
Overall Contact Length 0.328 8.32mm
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.079 inch
Dielectric Withstanding Voltage 500VAC V
PCB Contact Row Spacing 2.0066 mm
Dimensions
Height 1.52mm
Length 20mm
Width 8mm
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
