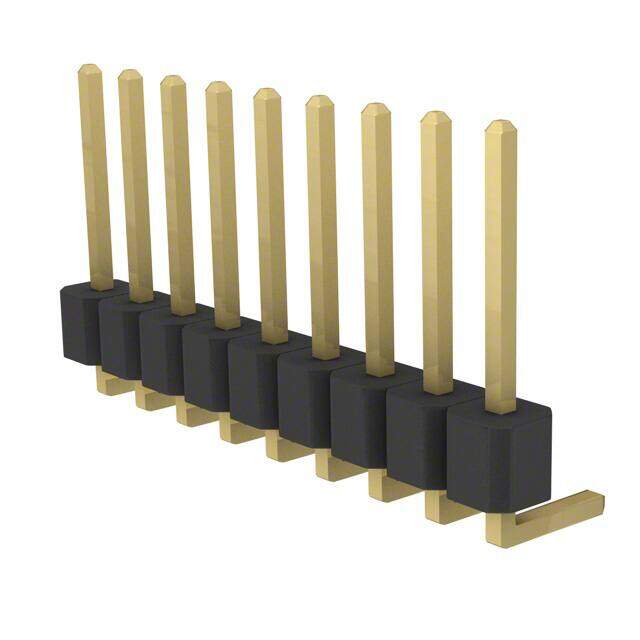

PRPC009SGAN-M71RC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 9POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.27
Unit Price: USD $0.2728
≥1 USD $0.2728
≥10 USD $0.23496
≥100 USD $0.18304
≥500 USD $0.156922
≥1000 USD $0.130768
≥3000 USD $0.112086
Inventory: 513
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating Flash
Technical
Insulation Resistance 5000000000Ohm
Contact Resistance 20mOhm
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.318 8.08mm
Number Of PCB Rows 1
Shrouding Unshrouded
Contact Length - Post 0.120 3.05mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.098 2.50mm
Terminal Pitch 2.54mm
Current Rating (Amps) 3A per Contact
Contact Type Male Pin
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Number of Rows 1
Number of Positions 9
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2011
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Brass
